Subcategory
Other Recessed Ltg.
Option
Energy Star
, LED
, Prop 65
Additional Info
Candlepower: 240
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Harmonized Codes
9405.11.8010
Warranty
5 Year Limited - Fixtures
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.25 in. Cutout
Dimmable Down To
100 to 10 percent
Dimming Type
Reverse Phase or Phase Selectable
ES Category
Downlight Recessed
ES Unique ID
ESID-2369679
Feature 1
ColorQuick CCT Selectable
Feature 3
Wet location rated
Feature 6
Air Tight Rated
Feature 7
Title 24 Compliant
Feature 8
ENERGY STAR Certified
Feature 9
108-Degree Beam Angle
Incandescent Equivalent
45W
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
Lens Material
Poly methyl methacrylate (PMMA)
Long Description

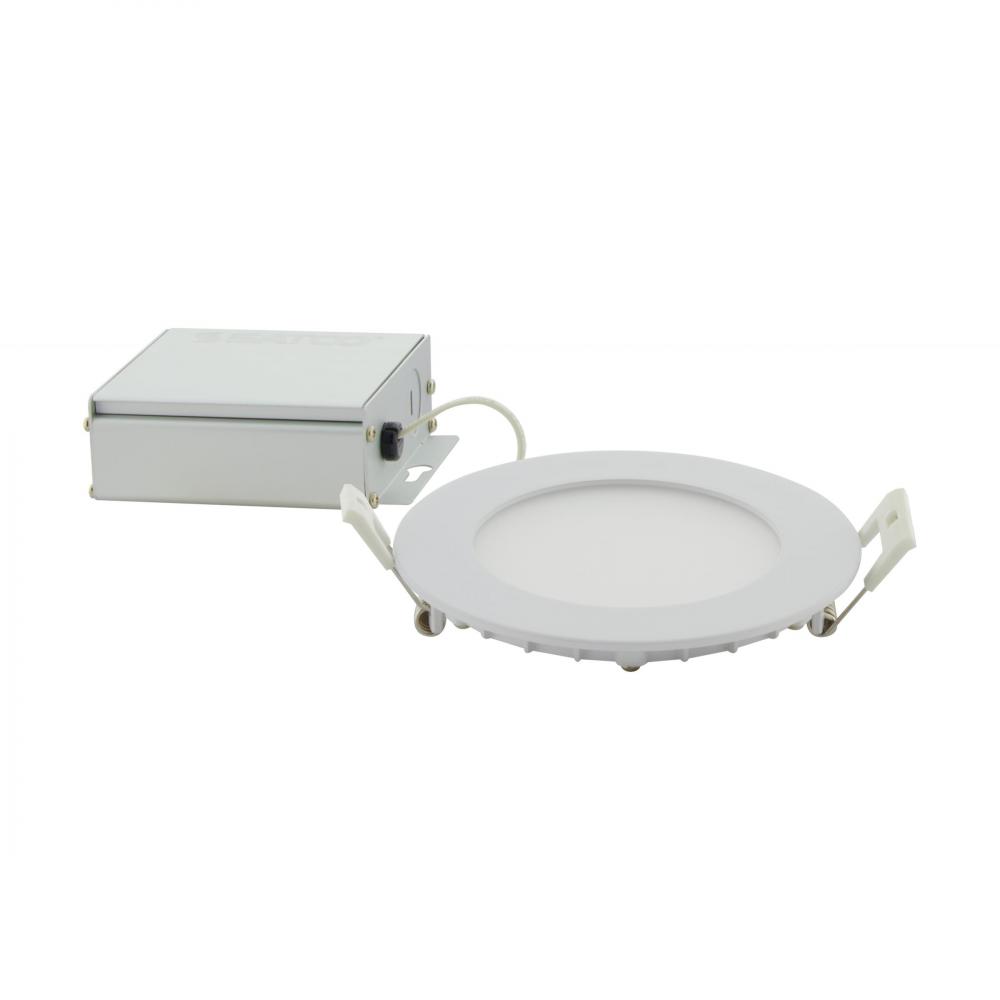

SATCO|NUVO’s S11826 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. T
Max Drywall Thickness
1/2 in.
Mounting Procedure
Ceiling
Operating Temprature
-20C (-4F) to +45C (+113F)
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
Romance Copy
SATCO|NUVO’s LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A vari
Safety Listing
cETLus - Listed
Short Description
10WLED/DW/EL/4/CCT-SEL/RND/RD
Sloped Ceiling Compatible
No
Specification Notes
Lumens (L) vary with color temperature (K): 2700K 650L / 3000K 670L / 3500K 700L / 4000K 700L / 5000K 690L
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Total Harmonic Distortion
<20%
Manufactured By
Satco Products Inc.
