11 inch; Acrylic Round; Flush Mounted; LED Light Fixture; CCT Selectable with Microwave Sensor ; : A05ZE

No Image
Available

Image may not reflect selected features

11 inch; Acrylic Round; Flush Mounted; LED Light Fixture; CCT Selectable with Microwave Sensor ; (A05ZE) by Nuvo 62/1211

11 inch; Acrylic Round; Flush Mounted; LED Light Fixture; CCT Selectable with Microwave Sensor ; White Finish; 120V

Product Specification

Item #

A05ZE

Dimensions

Height: 3.04"

Width: 11.54"

Additional product details

Vendor Item #

62/1211

Internal #

A05ZE

Category

Close-to-Ceiling

Sub Category

Utility

Style

Contemporary

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Diameter

11.54

Dimmable

Non-Dimmable

Each Height

13.78

Each Length

3.31

Each Width

13.75

Lumens

990L-1100L

Tariff Code

9405.11.8010

Warranty

5 Year Limited - Fixtures

Amps

0.138A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Closet Rated

Yes

Connection

Hardwire

Country Of Origin

China

CRI

Each Cube

0.3629

Each Quantity

Efficacy

60.00/63.33/66.67 LPW

ES Category

Close to Ceiling Mount

ES Unique ID

ESID-2370411

FCC Compliant

Yes

Feature 1

Select from 3 color temperatures, 3000K, 4000K, 5000K to set the perfect room tone

Feature 2

Microwave Sensor Motion Detection

Feature 3

Damp rated for indoor use

Feature 4

Durable PMMA cover

Feature 5

90 CRI High Color Rendition

Feature 6

D:11.54 inches; H:3.04 inches

Finish Family

White

Incandescent Equivalent

75W

Indoor Outdoor

Indoor

Installation Notes

Ceiling/Wall Mounting

JA8 Compliant

Lens Finish

White

Lens Material

Acrylic

Long Description

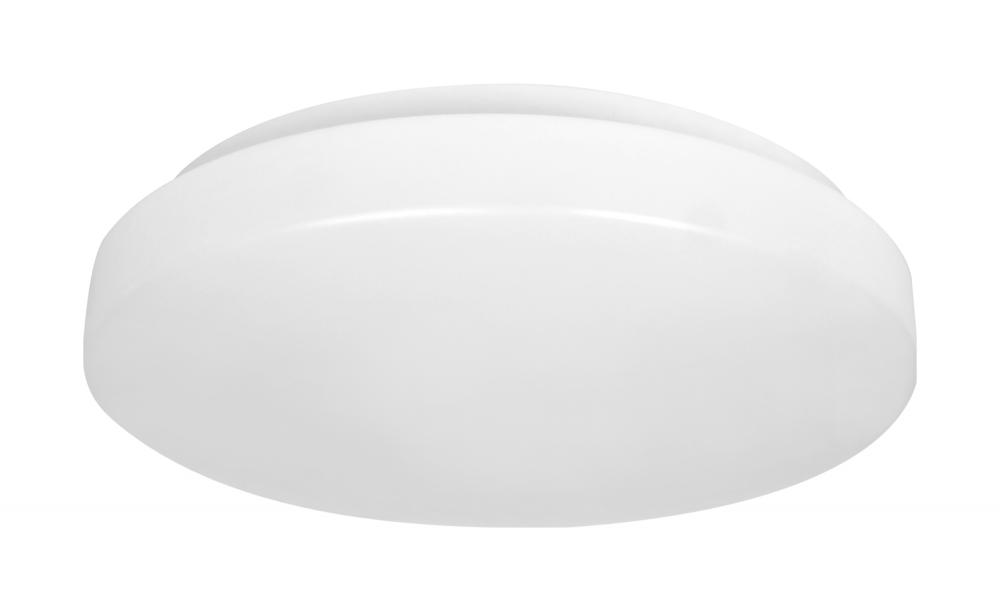

The 62-1211 11 inch round flush mounted LED light fixture offers a frosted white acrylic lens, Satco's ColorQuick CCT selectability, and microwave motion detection sensors enabling the lights to go on and off as the room is entered and exited.

Material

Steel

Mounting Procedure

Ceiling/Wall

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Pack Type

Color Box

Photocell

Integrated on/off Microwave Sensor

Power Factor

0.94

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

LED Cloud fixtures now feature Satco's ColorQuick Selectable CCT technology for even more versatility. Simple CCT selection and versatile design. The SATCO Cloud fixture is truly an all purpose lighting solution.

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Sensor Detection Range

10%/30%/50%/75%/100%

Sensor Mounting Height

2.5m - 6m

Sensor Mounting Type

Ceiling

Sensor Operating Temperature

-20C (-4F) to +55C (+131F)

Sensor Time Delay

5s;30s;1min;5min;10min;20min;30min

Short Description

11" ACRYLIC LED FLUSH FIXTURE

Sloped Ceiling Compatible

Yes

Temperature (CCT)

3000K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Wattage Selectable

Weight Lb.

1.21

Manufactured By

Nuvo

Finish

Additional options that would change other selections
