12 Watt; LED Direct Wire; Low Profile Regress Baffle Downlight; 6 Inch Round; Starfish IOT; Tunable : X3XPE

No Image
Available

Image may not reflect selected features

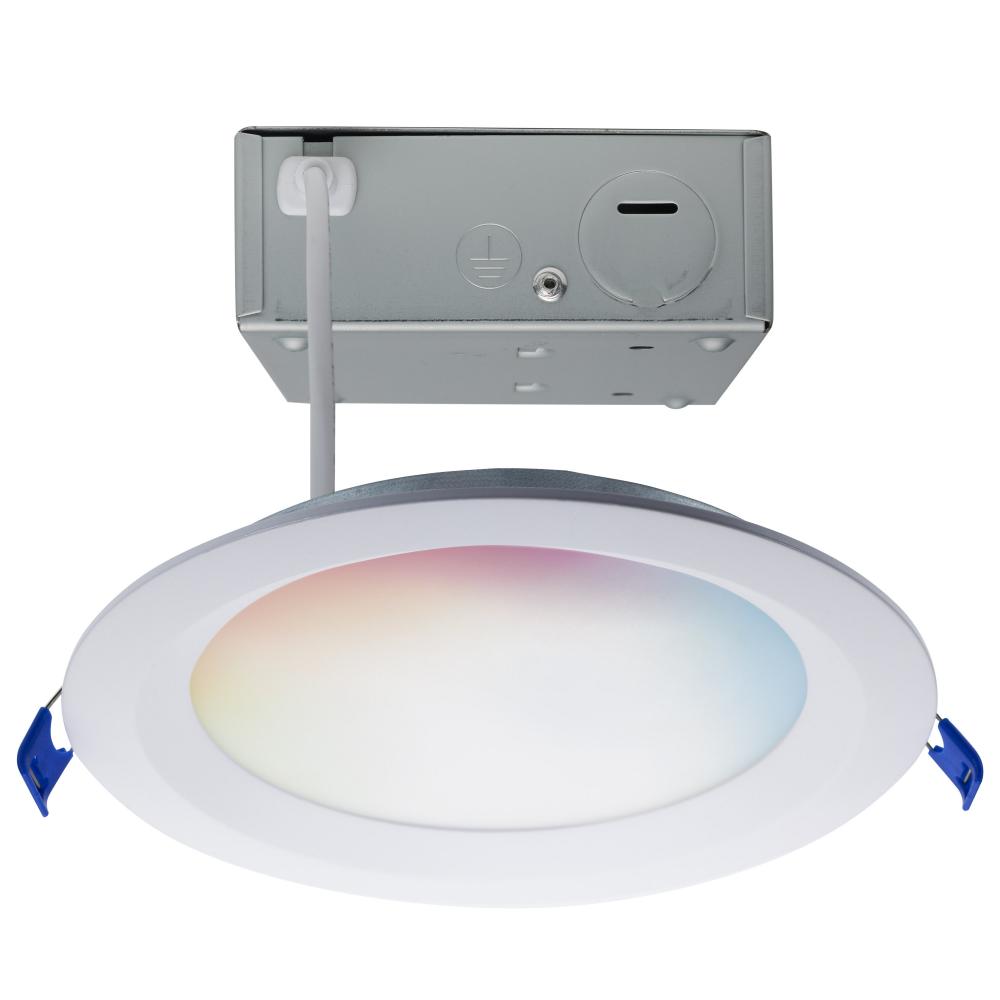

12 Watt; LED Direct Wire; Low Profile Regress Baffle Downlight; 6 Inch Round; Starfish IOT; Tunable (X3XPE) by Satco Products Inc. S11566

12 Watt; LED Direct Wire; Low Profile Regress Baffle Downlight; 6 Inch Round; Starfish IOT; Tunable White and RGB; 120 Volt; 90 CRI; White Finish

Product Specification

Item #

X3XPE

Dimensions

Height: 1.25"

Width: 7.17"

Additional product details

Vendor Item #

S11566

Internal #

X3XPE

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Bulb Hours

50000

Bulb Kelvin

Warm to Cool White/Color Changeable

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.17

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.8010

Lumens

750L

Ship Carton Height

7.48

Ship Carton Length

7.64

Ship Carton Width

2.68

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.100A

ANSI Base

Integrated

Beam Spread

110

CA Prop-65

Lead

Carton Cubic Feet

0.0886

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

6.31 in. Cutout

Clearance Height

1.25

Communication Protocol

WiFi-2.4GHz

Connection

Direct Wired

Country Of Origin

Thailand

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

Only with Starfish App

Dimming Type

Smart-Starfish App only

Efficacy

62.50 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-2495000

FCC Compliant

Yes

Feature 1

Smooth baffle reduces glare

Feature 2

STARFISH smart enabled product

Feature 3

RGB, color changing & tunable white

Feature 4

Pre-set and custom effects

Feature 5

Compatible with Google Home, Siri, Alexa, and SmartThings

Feature 6

Wet Location Rated

Feature 7

Dimmable with app

Feature 8

90 CRI

Feature 9

ENERGY STAR

Finish Family

White

Fixture shape

Round

Has Driver

Yes

IC Rated

Yes

Incandescent Equivalent

60W

Indoor Outdoor

Indoor

Installation Notes

Driver Dimensions: 3.46 Inches Long x 3.46 Inches Wide x 1.44 Inches High

IOT Enabled

Yes

JA8 Compliant

Yes

Lens Finish

Frosted

Lens Material

Polycarbonate (PC)

Long Description

SATCO|NUVO’s S11566 LED Slimfit Downlight with STARFISH technology is the ultimate choice for smart lighting and ambiance control. Download the STARFISH app to customize any tunable white color temperatures from 2000K warm white to 5000K natural light or

Material

Aluminum

Max Drywall Thickness

1 in.

Mounting Procedure

Recessed Direct Wire

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Box

Pairing Technology

Bluetooth;M+N;WiFi

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO’s LED Slimfit Downlights with STARFISH technology are the ultimate choice for smart lighting and ambiance control. Download the STARFISH app to customize any tunable white color temperatures from 2000K warm white to 5000K natural light or choo

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

12WLED/DW/6/RGBTW/RND/RD/WH

Software Supported

Tuya/Starfish APP

Temperature (CCT)

2000K-5000K

Title 20 Compliant

Title 24 Compliant

Yes

Total Harmonic Distortion

<30%

Voice Assistants Supported

Google Home;Alexa;Siri;SmartThings

Wattage Selectable

Weight Lb.

1.19

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
