12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Square : X3WR8

No Image
Available

Image may not reflect selected features

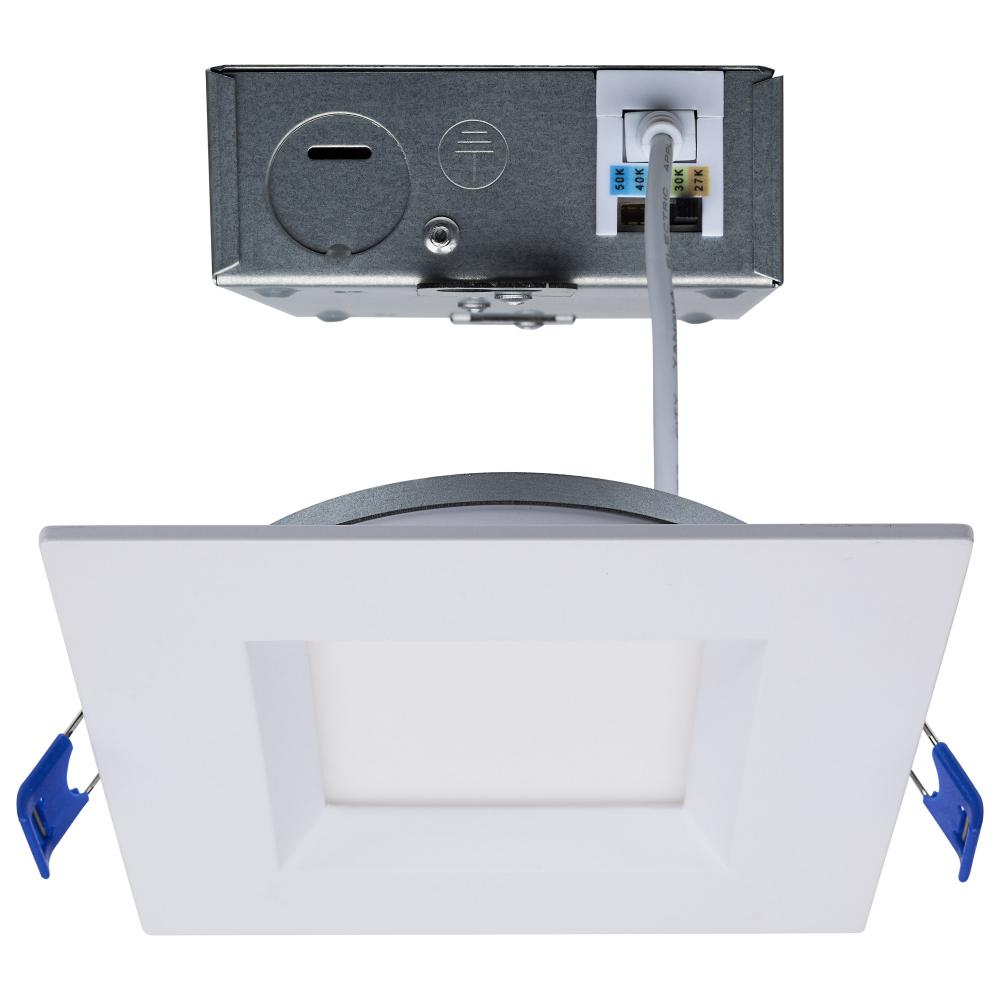

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Square (X3WR8) by Satco Products Inc. S11871

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Square Shape; White Finish; 120 Volt

Product Specification

Item #

X3WR8

Dimensions

Height: 1.29"

Width: 5.06"

Additional product details

Vendor Item #

S11871

Internal #

X3WR8

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.8010

Length

5.06

Lumens

750L

Ship Carton Height

5.31

Ship Carton Length

6.1

Ship Carton Width

3.54

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.100A

ANSI Base

Integrated

Beam Spread

110

CA Prop-65

Lead

Carton Cubic Feet

0.0664

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

4.25 in. Cutout

Closet Rated

Connection

Direct Wired

Country Of Origin

Thailand

CRI

Dimmable Down To

100 to 10 percent

Efficacy

62.50 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-2408268

FCC Compliant

Yes

Feature 1

CCT Selectable

Feature 2

90 CRI

Feature 3

Dimmable

Feature 4

Wet location rated

Feature 5

Rated for 50,000 hours

Feature 6

5-Year warranty

Feature 7

FCC and RoHS compliant

Finish Family

White

Fixture shape

Square

Has Driver

Yes

IC Rated

Yes

Incandescent Equivalent

60W

Indoor Outdoor

Indoor

Installation Notes

Driver Dimensions: 4.27 x 3.62 x 1.44

IOT Enabled

IP Rating

IP65

JA8 Compliant

Yes

Lens Finish

White

Lens Material

Polystyrene (PS)

Long Description

SATCO|NUVO's S11871 Slim Fit 4 inch white square Downlight fixture delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and glare. Offering a range of five color temperatures from 2700K

Material

Aluminum

Mounting Procedure

Recessed Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Box

Power Factor

0.96

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

The Slim Fit Downlight from SATCO|NUVO delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from 2700K to 5000K, you can custom

Safety Listing

cETLus - Listed

SDS class

LED_Lamp

Short Description

12WLED/DW/4/CCT-SEL/SQ/RD/WH

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Yes

Wattage Selectable

Weight Lb.

1.03

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
