Bulb Shape
Integrated LED
Harmonized Codes
8539.52.0091
Warranty
5 Year Limited - Fixtures
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
5.36 in. Cutout
Connection
Connector or Adapter
Dimmable Down To
100 to 10 percent
Feature 1
Smooth Baffle | Round
Feature 5
Compatible with 5-6 inch standard housing
Feature 7
Phase-Cut Dimmable down to 10 percent
Incandescent Equivalent
75W
Includes
E26 Adapter included (S9001)
Lens Material
Polycarbonate (PC)
Long Description

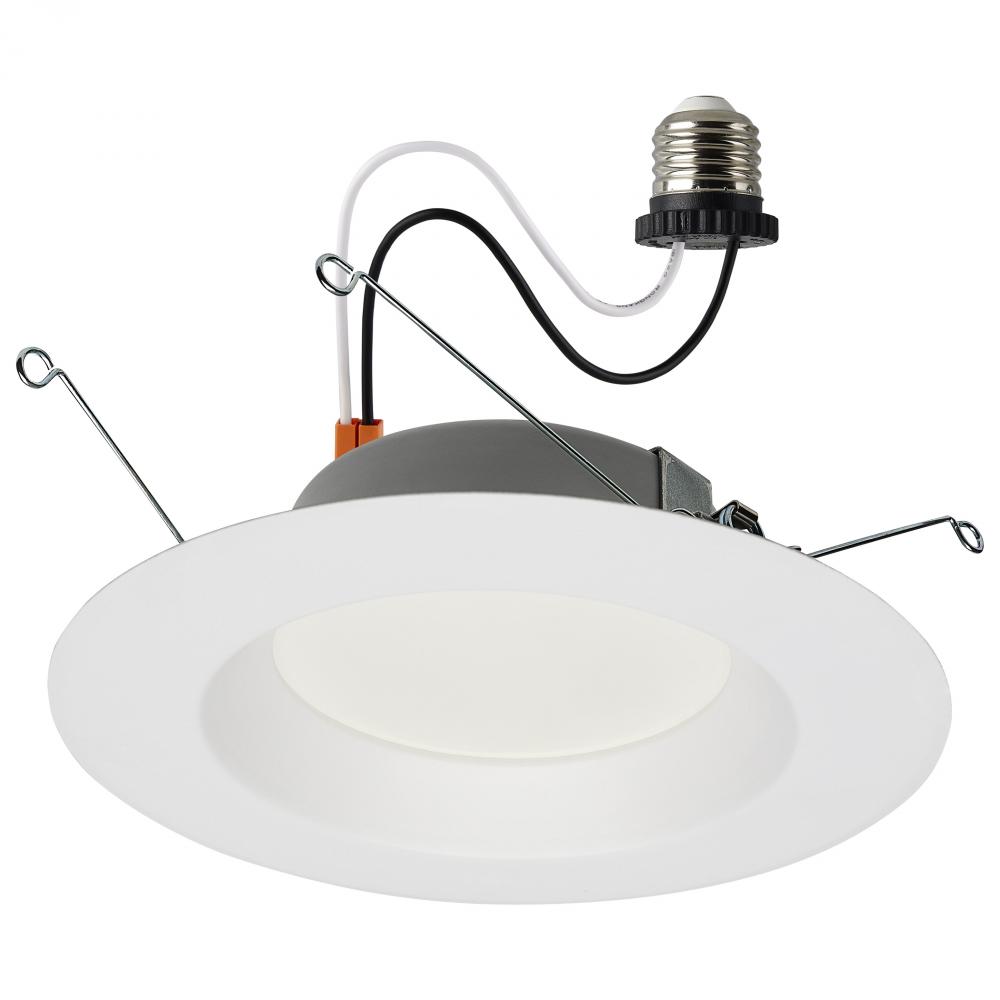

Elevate your lighting with SATCO|NUVO’s S11644 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 12.5-watts with a beam spread of 100 degrees and a color rendering temperature of 4000K, making it the perfect upgrade for e
Material
Die-Cast Aluminum
Minimum Compartment Size
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Mounting Procedure
Ceiling
Operating Temprature
-20C (-4F) to +45C (+113F)
Replaceable Light Source
No
Romance Copy
Elevate your lighting with SATCO|NUVO’s LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring a
Safety Listing
cULus - Classified
Short Description
12.5WLED/RDL/5-6/940/120V
Total Harmonic Distortion
<30%
