Sub-Category
LED T8 U Bend
Bulb Dimmable
Non-Dimmable
Bulb Kelvin
3000K/4000K/5000K
Harmonized Codes
8539.52.0051
Warranty
5 Year Limited - T8 LED Bulbs
Additional Info
Replaces FB34T12/U3
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Neutral White to Natural Light
Efficacy
142.31/150.00/150.00 LPW
Enclosure Rating
Enclosed Rated Lamp
Feature 2
Dual mode models compatible with ballast or in ballast bypass configurations
Feature 3
Shatterproof tube
Feature 4
Single or double-ended wiring when installed for ballast bypass operation
Feature 5
Compatible with select emergency backup and dimming ballasts
Feature 6
5-Year warranty
Feature 7
3 inch leg spacing
Feature 8
Medium Bi Pin base
Flourescent Equivalent
32W
Incandescent Equivalent
50W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended;Double Ended
Long Description

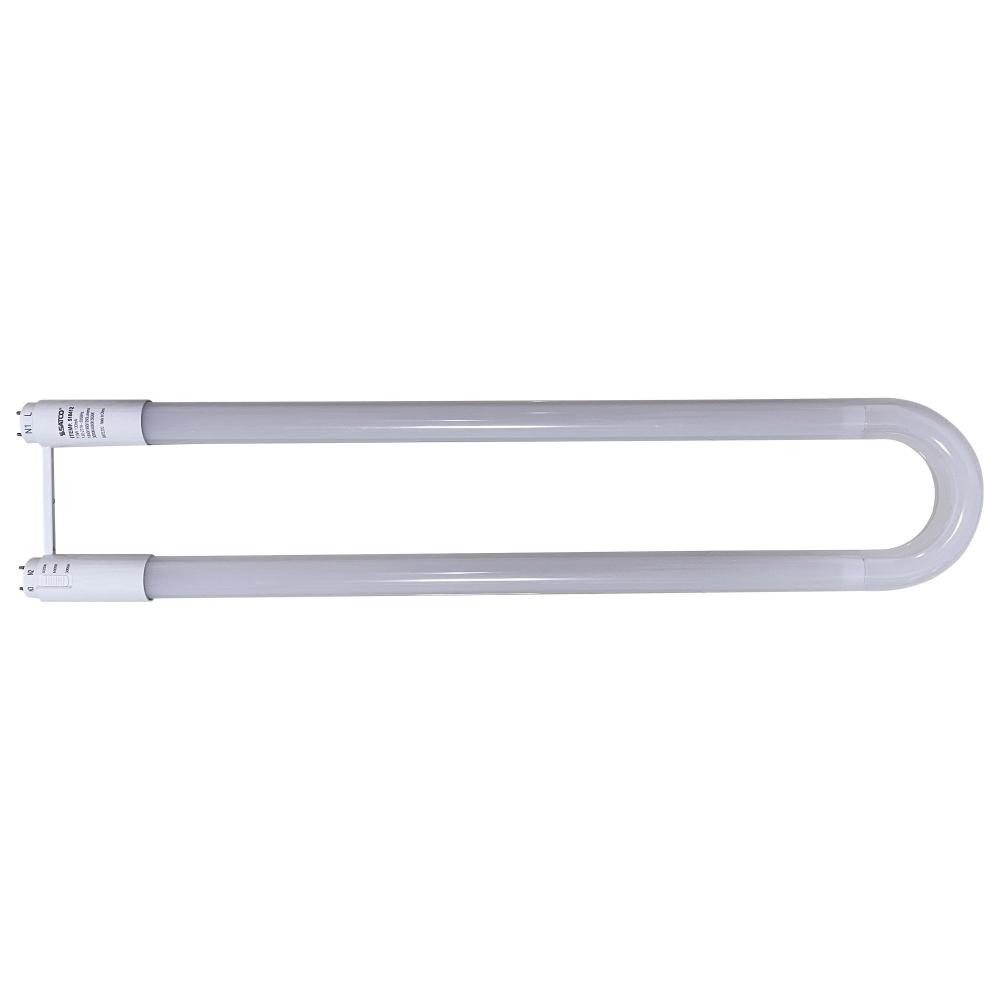

SATCO|NUVO'S S18412 LED T8 U-Bend lamp is CCT selectable to provide versatility in a range of applications. This 3-inch model is ballast bypass. This lamp can be easily installed with single-ended non-shunted sockets or double-ended shunted or non-shun
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Romance Copy
SATCO|NUVO'S LED T8 U-Bend lamps are CCT selectable and available in 1 inch, 3 inch, and 6 inch models to provide versatility in a range of applications. 1 inch and 6 inch models are Dual Mode to operate in ballast bypass or ballast compatible configur
Short Description
13T8/U3/LED/CCT/BP/SE-DE
Surge Protection
Built-in-surge protection - 0.7KV
Total Harmonic Distortion
20%
