Sub-Category
LED CFL Replacements Pin Based
Bulb Dimmable
Non-Dimmable
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Harmonized Codes
8539.52.0091
Warranty
5 Year Limited - 10 hr per day
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White to Natural Light
Efficacy
125.00/127.50/130.00 LPW
Feature 1
5 CCT Selectable
Feature 2
High Lumen Output
Feature 3
Rated for Extreme Temperatures
Feature 4
300 Degree Beam Angle
Feature 5
26W Fluorescent Replacement
Feature 6
Damp location rated
Feature 7
Type B Ballast Bypass
Feature 8
Rated for Enclosed Fixtures
Feature 9
120/277V Dual Voltage
Flourescent Equivalent
26W
Incandescent Equivalent
100W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Suggested wattage equivalency = 26W CFL
Lamp Ballast Type A/B/C
Type B
Long Description

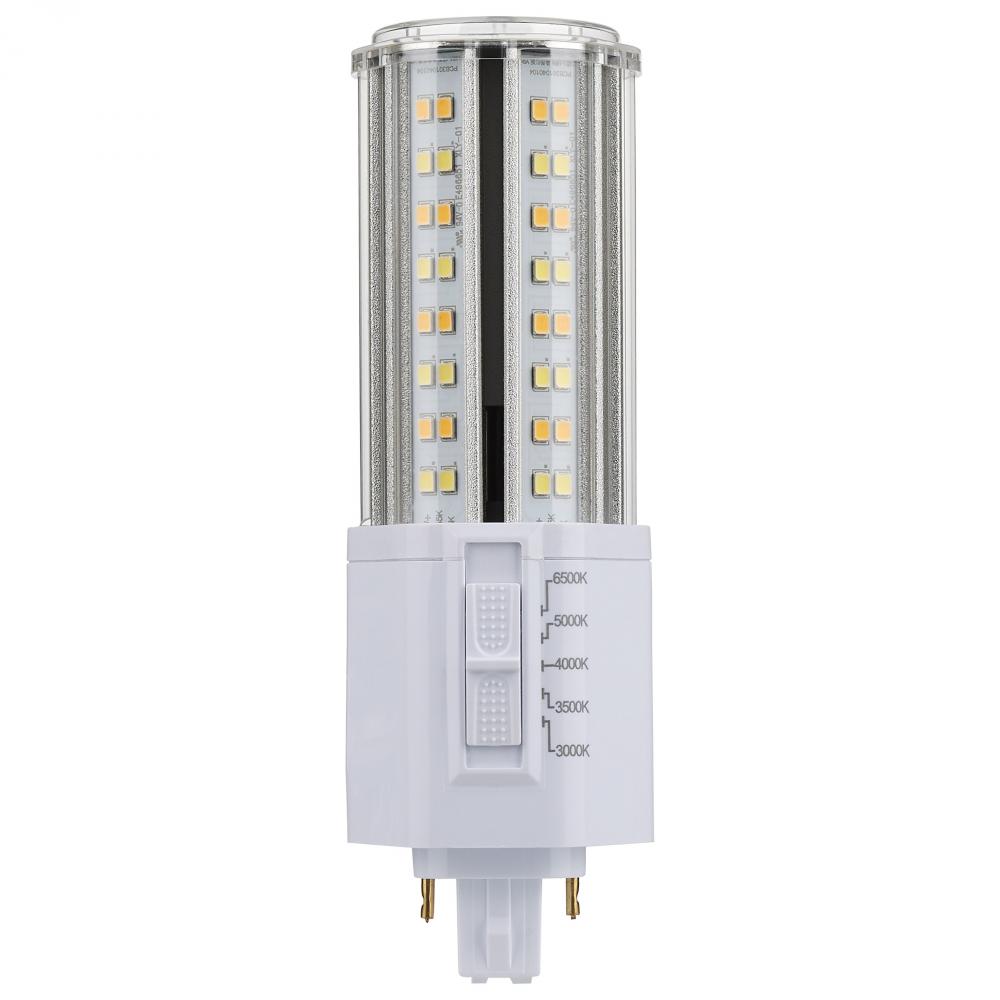

Designed to deliver impressive brightness, SATCO|NUVO's S21413, 14-watt LED High Lumen PL Lamps outshine traditional 26-watt fluorescents. THE G24d base allows for seamless replacement of outdated fixtures, providing a hassle-free upgrade. With their a
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 6 in. Width: 6 in. Height: 8.5 in.
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +50C (+122F)
Romance Copy
Designed to deliver impressive brightness, LED High Lumen PL Lamps outshine traditional fluorescents. THE G24d base allows for seamless replacement of outdated fixtures, providing a hassle-free upgrade. With their advanced ballast bypass Type B technology,
Short Description
14W/PL/LED/HL/5CCT/G24
Surge Protection
Built-in-surge protection - 0.5KV
Total Harmonic Distortion
20%
