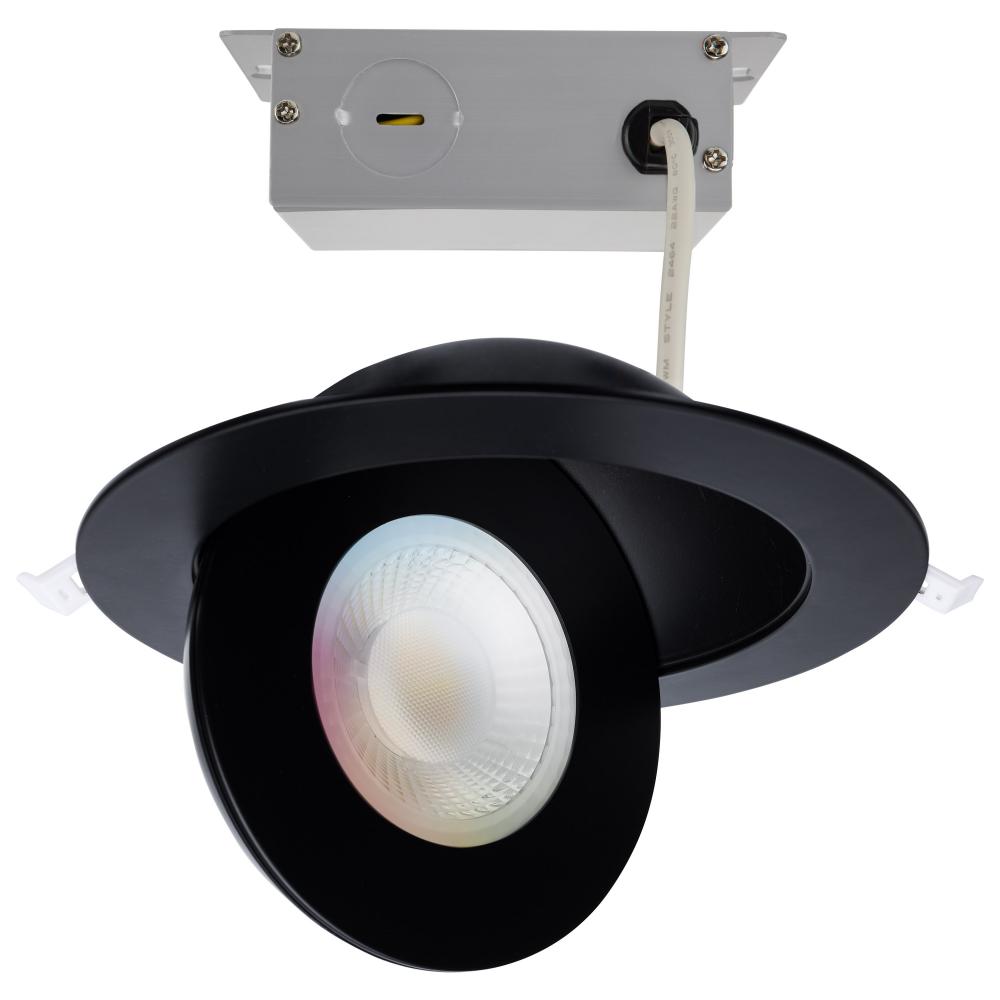

15 Watt; LED Gimbaled Downlight; 6 Inch; RGB & Tunable White; Round; Starfish IOT; Black Finish; : X6UH6

No Image
Available

Image may not reflect selected features

15 Watt; LED Gimbaled Downlight; 6 Inch; RGB & Tunable White; Round; Starfish IOT; Black Finish; (X6UH6) by Satco Products Inc. S11296

15 Watt; LED Gimbaled Downlight; 6 Inch; RGB & Tunable White; Round; Starfish IOT; Black Finish; 1200 Lumens; 120-277 Volt

Product Specification

Item #

X6UH6

Dimensions

Height: 2.13"

Width: 7.48"

Additional product details

Vendor Item #

S11296

Internal #

X6UH6

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Bulb Hours

50000

Bulb Kelvin

Warm to Cool White/Color Changeable

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.48

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.8010

Lumens

1200L

Ship Carton Height

8.27

Ship Carton Length

8.19

Ship Carton Width

3.94

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.125-0.054A

ANSI Base

Integrated

BAA Compliant

Beam Spread

CA Prop-65

Lead

Carton Cubic Feet

0.1544

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

6.313 in. Cutout

Clearance Height

Communication Protocol

WiFi-2.4GHz

Connection

Direct Wired

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

Only with Starfish App

Efficacy

80.00 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-2470770

FCC Compliant

Yes

Feature 1

STARFISH smart enabled product

Feature 2

RGB, color changing & tunable white

Feature 3

Pre-set and custom effects

Feature 4

90 CRI

Feature 5

Damp location rated

Feature 6

Dimmable with app

Feature 7

Compatible with Google Home, Siri, Alexa, and SmartThings

Feature 8

ENERGY STAR

Finish Family

Black

Fixture shape

Round

Has Driver

Yes

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

75W

Indoor Outdoor

Indoor

IOT Enabled

Yes

IP Rating

IP42

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Plastic

Long Description

SATCO|NUVO’s S11296 LED Directional 6-inch round Low-Profile Downlight with black trim offers STARFISH technology for the ultimate choice for smart lighting and ambiance control. Download the STARFISH app to customize tunable white color temperatures fro

Material

Aluminum

Max Drywall Thickness

1 in.

Mounting Procedure

Recessed Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +45C (+113F)

Pack Type

Box

Pairing Technology

Bluetooth;WiFi

Power Factor

>0.9

Quantity In Pack

Rec Spacing Between Fixtures

3 ft. to 4 ft.

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO’s LED Directional Low-Profile Downlights with STARFISH technology are the ultimate choice for smart lighting and ambiance control. Download the STARFISH app to customize tunable white color temperatures from 2700K warm white light to 5000K nat

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

15WLED/GBL/6/RGBW/RND/BL

Software Supported

Tuya/Starfish APP

Specification Notes

360 degree rotation; 0 to 80 degree aiming angle

Temperature (CCT)

2700K-5000K

Title 20 Compliant

Title 24 Compliant

Yes

Trim Color

Black

Voice Assistants Supported

Google Home;Alexa;Siri;SmartThings

Wattage Selectable

Weight Lb.

1.22

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
