24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Square; : X3NXN

No Image
Available

Image may not reflect selected features

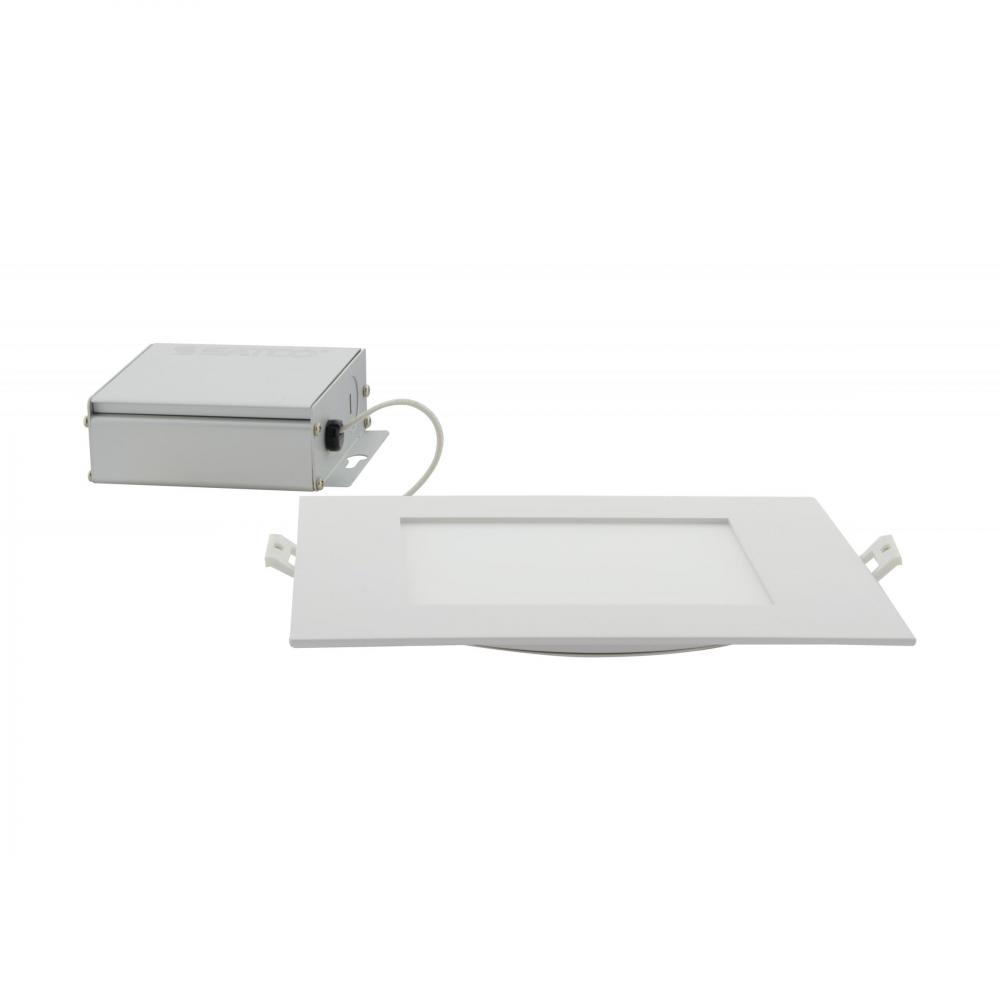

24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Square; (X3NXN) by Satco Products Inc. S11831

24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Square; Remote Driver

Product Specification

Item #

X3NXN

Dimensions

Height: 0.90"

Width: 8.86"

Additional product details

Vendor Item #

S11831

Internal #

X3NXN

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Additional Info

Candlepower: 500

Bulb Hours

50000

Bulb Kelvin

Warm to Cool White

Bulb Shape

Integrated LED

Bulb Type

LED

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.8010

Length

8.859999999999999

Lumens

1750L

Ship Carton Height

9.41

Ship Carton Length

10.71

Ship Carton Width

1.81

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.200A

ANSI Base

Integrated

BAA Compliant

Beam Spread

108

CA Prop-65

Lead

Can Size

8 in.

Carton Cubic Feet

0.1056

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

8.11 in. Cutout

Clearance Height

Connection

Direct Wired

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Efficacy

72.92 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-2369695

FCC Compliant

Yes

Feature 1

ColorQuick CCT Selectable

Feature 10

120V

Feature 2

90 CRI

Feature 3

Wet location rated

Feature 4

Dimmable

Feature 5

IC Rated

Feature 6

Air Tight Rated

Feature 7

Title 24 Compliant

Feature 8

ENERGY STAR Certified

Feature 9

108-Degree Beam Angle

Finish Family

White

Fixture shape

Square

Has Driver

Yes

IC Rated

Yes

Incandescent Equivalent

85W

Indoor Outdoor

Indoor

IP Rating

IP20

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Poly methyl methacrylate (PMMA)

Long Description

SATCO|NUVO’s S11831 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. T

Material

Aluminum

Max Drywall Thickness

1/2 in.

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +45C (+113F)

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Rec Spacing Between Fixtures

6 ft. to 8 ft.

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO’s LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A vari

Safety Listing

cETLus - Listed

SDS class

LED_Lamp

Short Description

24WLED/DW/EL/8/CCT-SEL/SQ/RD

Sloped Ceiling Compatible

Specification Notes

Lumens (L) vary with color temperature (K): 2700K 1650L / 3000K 1700L / 3500K 1800L / 4000K 1800L / 5000K 1750L

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Trim Color

White

Trim Material

Aluminum

Wattage Selectable

Weight Lb.

1.81

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
