Sub Category
Double Basket
Additional Info
90 Minute Battery Runtime
Bulb Shape1
Integrated LED
Color Temperature
Neutral White to Natural Light
Warranty
5 Year Limited - Fixtures
Amps
0.300-0.108/0.400-0.144/0.500-0.181A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Dimmable Function
0-10V Dimming
DLC Classification
Standard
DLC Primary Use
2x4 Luminaires for Ambient Lighting of Interior Commercial Spaces
Efficacy
110.00/113.13/115.00 LPW
Feature 1
3 CCT Selectable ( 3500K, 4000K, 5000K)
Feature 2
3 Wattage Selectable (30W, 35W, 40W)
Feature 5
Length: 47.72 inches X Width:23.74 inches X Height: 3.02 inches
Has Emergency Battery
Yes
Incandescent Equivalent
125W
Lens Material
Poly methyl methacrylate (PMMA)
Long Description

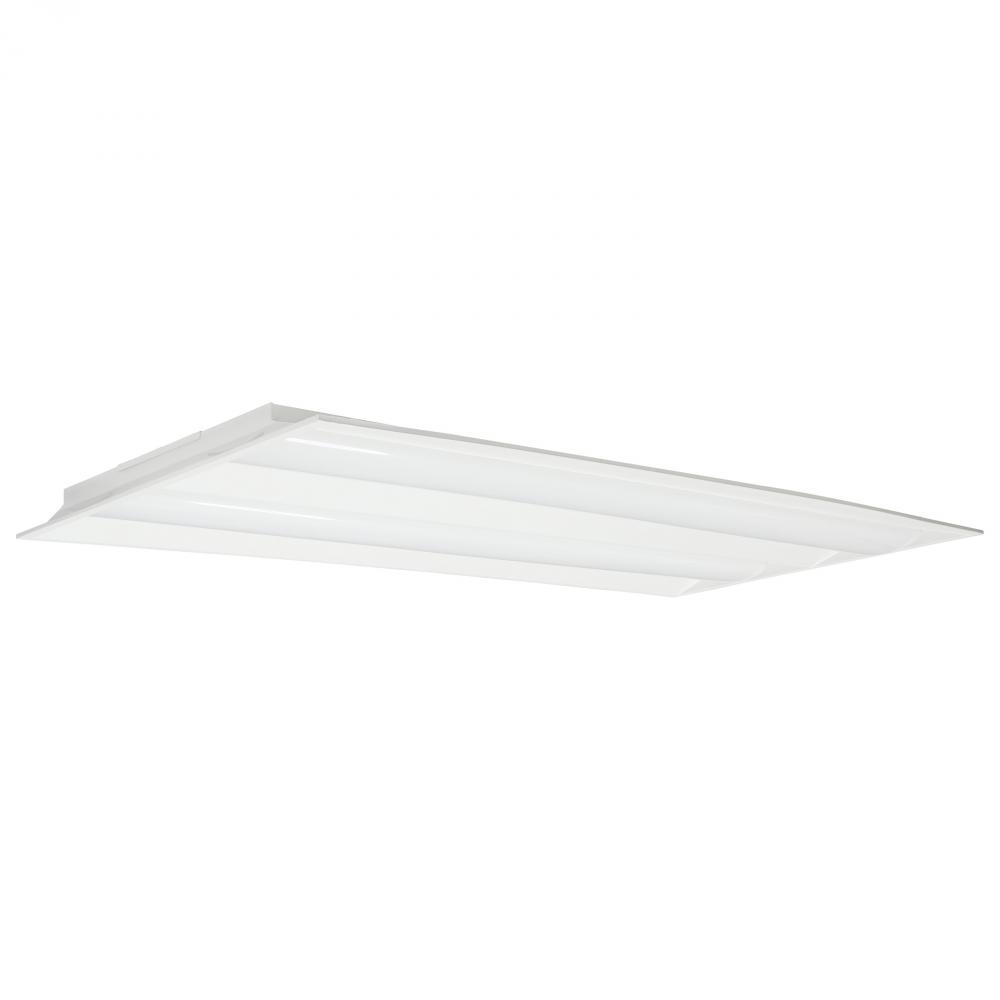

SATCO|NUVO's 65-697 2x4 Emergency Backup Double Basket rectangular troffer comes in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver te
Mounting Procedure
Ceiling
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Replaceable Light Source
No
Romance Copy
SATCO|NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our t
Safety Listing
cULus - Certified
Short Description
2X4 EM DOUBLE BASKET TROFFER
Temperature (CCT)
3500K/4000K/5000K
Total Harmonic Distortion
<20%
