Subcategory
Other Recessed Ltg.
Option
Energy Star
, LED
, Prop 65
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Harmonized Codes
9405.42.6000
Warranty
5 Year Limited - LED Commercial Downlights
Amps
0.275-0.119/0.333-0.144/0.383-0.166A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
10.00 in. Cutout
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
Efficacy
75.76/75.00/76.09 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-2353730
Feature 1
Lawful for sale in California
Feature 2
Selectable wattage, lumens, and CCT
Feature 3
Remote driver and J-box with knockouts
Feature 4
Quick connect feature for easy installation
Feature 5
ENERGY STAR listed
Feature 6
Five year limited warranty
Feature 7
Five year limited warranty
Incandescent Equivalent
150W/200W/250W
Installation Notes
Can be installed with or without the rough-in plate (80-959)
Lens Material
Polycarbonate (PC)
Long Description

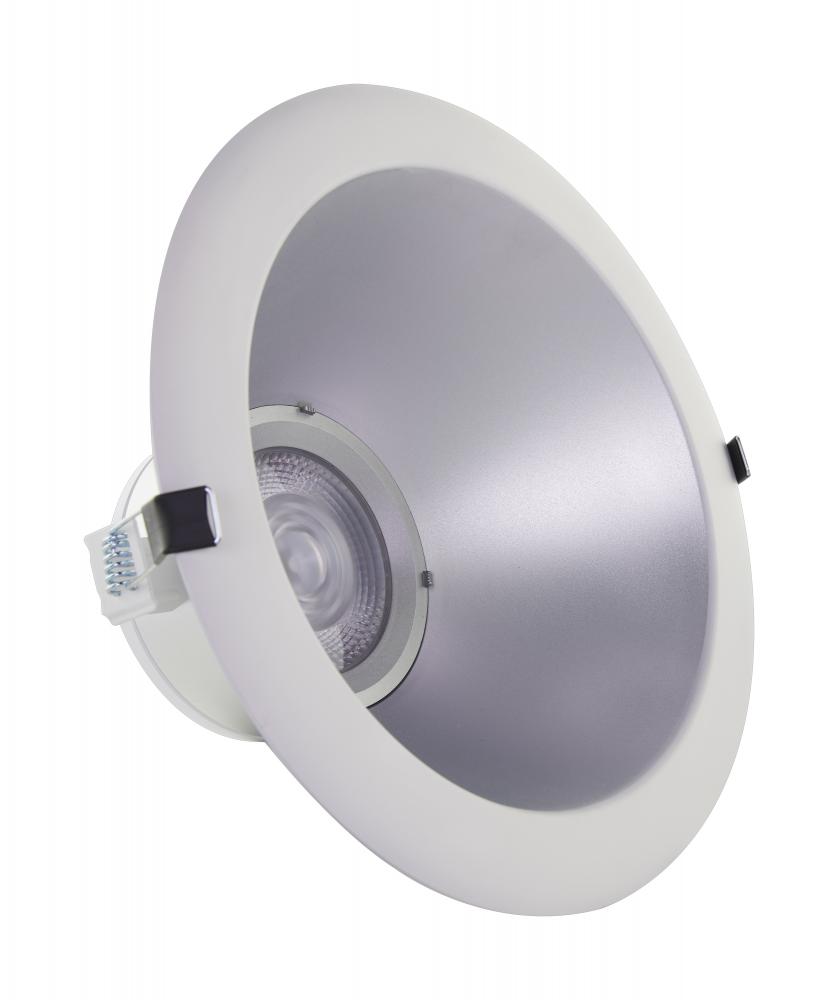

Satco's S11817 wattage selectable, 10 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations an
Mounting Procedure
Ceiling
Operating Temprature
-20C (-4F) to +40C (+104F)
Replaceable Light Source
No
Romance Copy
This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure
Safety Listing
cETLus - Listed
Short Description
46WLED/CDL/10/ADJ-CCT/40D
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Manufactured By
Satco Products Inc.
