7 Watt; LED Downlight Retrofit; 4 Inch; CCT Selectable; 120 volts; Dimmable; Brushed Nickel Finish : X3NXQ

No Image
Available

Image may not reflect selected features

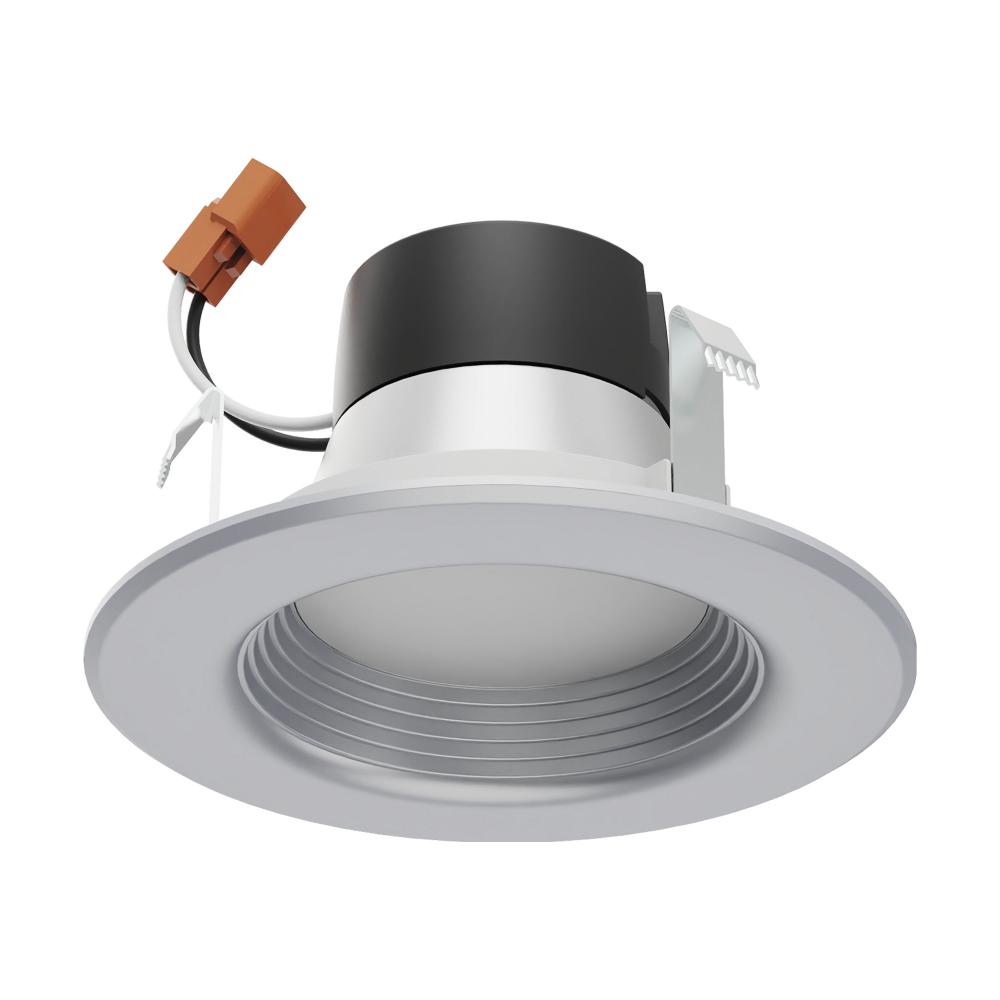

7 Watt; LED Downlight Retrofit; 4 Inch; CCT Selectable; 120 volts; Dimmable; Brushed Nickel Finish (X3NXQ) by Satco Products Inc. S11833

7 Watt; LED Downlight Retrofit; 4 Inch; CCT Selectable; 120 volts; Dimmable; Brushed Nickel Finish

Product Specification

Item #

X3NXQ

Dimensions

Height: 3.00"

Width: 5.31"

Additional product details

Vendor Item #

S11833

Internal #

X3NXQ

Category

Recessed

Sub Category

Retrofits

Style

Contemporary

Bulb Hours

50000

Bulb Kelvin

Warm to Cool White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

5.31

Dimmable

Yes-Dimmable

Harmonized Codes

8539.52.0091

Lumens

600L

Ship Carton Height

5.91

Ship Carton Length

3.5

Ship Carton Width

5.5

Warranty

5 Year Limited - Fixtures

Amps

0.058A

ANSI Base

E26 Adapter

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

4 in.

Carton Cubic Feet

0.0658

Cartons Per Unit

CCT Selectable

Yes

CEC

T20 Non-Compliant - Efficacy Rating <297

CEC Terse

Non-Compliant

CEC Web Text

Non-Compliant

Ceiling Aperture

4.25 in. Cutout

Clearance Height

Connection

Direct Wired

Country Of Origin

China

CRI

Dark Sky Rated

Dimmable Down To

100 to 10 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Efficacy

85.71 LPW

ES Category

Downlight Solid State Retrofit

ES Unique ID

ESID-2372284

FCC Compliant

Yes

Feature 1

CCT selectable 2700K/3000K/3500K/4000K/5000K

Feature 2

Diameter: 5.31 inches, Height: 3.00 inches

Feature 3

Brushed Nickel Finish

Feature 4

Material: Aluminum

Feature 5

Lens Material: Plastic

Feature 6

Round Shape

Feature 7

600 lumens

Feature 8

Rated for 50,000 hours

Feature 9

5-year limited warranty

Finish Family

Nickel

Fixture shape

Round

Has Driver

Yes

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

50W

Indoor Outdoor

Indoor

Installation Notes

Aluminum Pressure Brackets

IOT Enabled

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Plastic (PS)

Long Description

Satco's S11833 7-watt retrofit downlight is a sleek lighting solution for both residential and commercial applications. This dimmable fixture is CCT selectable, for all your lighting needs. Versatile and maintenance free, this brushed nickel fixture is

Material

Aluminum

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Color Box

Photocell

Power Factor

>0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's 7-watt retrofit downlight is a sleek lighting solution for both residential and commercial applications. This dimmable fixture is CCT selectable, for all your lighting needs. Versatile and maintenance free, this brushed nickel fixture is rated

Safety Listing

cULus - Classified;cULus - Certified

SDS class

LED_Fixture

Short Description

7WLED/RDL/4/CCT-SEL/120V/BN

Sloped Ceiling Compatible

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Trim Color

Brushed Nickel

Wattage Selectable

Weight Lb.

0.364

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
