7.2 Watt LED Downlight Retrofit; 5-6 Inches; 3000K; 120 Volt; White Finish : X3WQ6

No Image
Available

Image may not reflect selected features

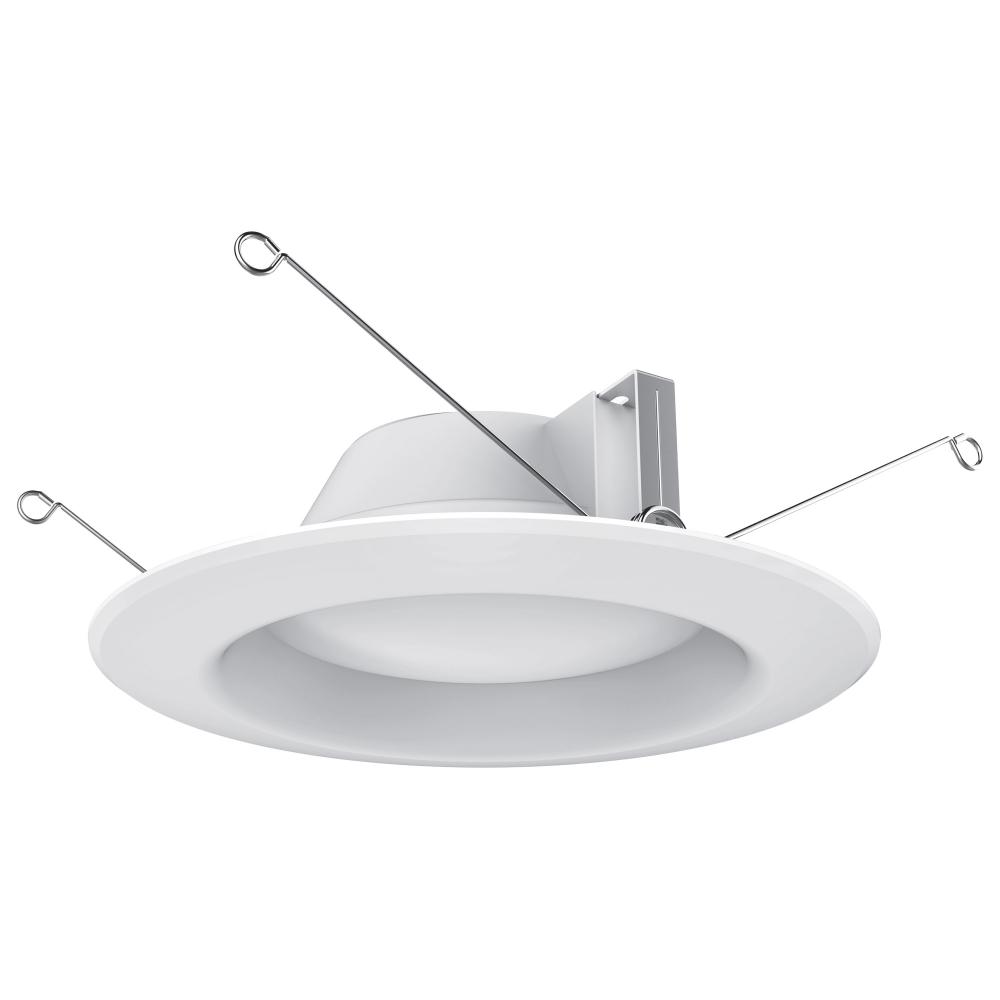

7.2 Watt LED Downlight Retrofit; 5-6 Inches; 3000K; 120 Volt; White Finish (X3WQ6) by Satco Products Inc. S39313

7.2 Watt LED Downlight Retrofit; 5-6 Inches; 3000K; 120 Volt; White Finish

Product Specification

Item #

X3WQ6

Dimensions

Height: 2.30"

Width: 7.40"

Additional product details

Vendor Item #

S39313

Internal #

X3WQ6

Category

Recessed

Sub Category

Retrofits

Style

Utility

Bulb Hours

35000

Bulb Kelvin

Soft White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.4

Dimmable

Yes-Dimmable

Harmonized Codes

8539.52.0091

Lumens

650L

Ship Carton Height

8.07

Ship Carton Length

8.27

Ship Carton Width

2.68

Warranty

5 Year Limited - Fixtures

Air Tight

Amps

0.06A

ANSI Base

E26 Adapter

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

5-6 in.

Carton Cubic Feet

0.1035

Cartons Per Unit

CCT Selectable

CEC

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Ceiling Aperture

5.36 in. Cutout

Connection

Connector or Adapter

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Phase cut

Efficacy

90.28 LPW

ES Category

Downlight Solid State Retrofit

ES Unique ID

ESID-2408188

FCC Compliant

Yes

Feature 1

Smooth Baffle | Round

Feature 2

90 CRI

Feature 3

E26 Adapter

Feature 4

Wet Location

Feature 5

Compatible with 5-6 inch standard housing

Feature 6

Energy Star

Feature 7

T24 Compliant

Feature 8

Phase-Cut Dimmable down to 10 percent

Feature 9

FCC and RoHS Compliant

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

65W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Polycarbonate (PC)

Long Description

Elevate your lighting with SATCO|NUVO’s S39313 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 7.2-watts with a beam spread of 90 degrees and a color rendering temperature of 3000K, making it the perfect upgrade for exi

Material

Aluminum

Mounting Procedure

Recessed Retrofit

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Box

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Elevate your lighting with SATCO|NUVO’s LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring a

Safety Listing

cULus

SDS class

LED_Fixture

Short Description

7.2WLED/RDL/5-6/930/120V

Temperature (CCT)

3000K

Title 20 Compliant

Yes

Title 24 Compliant

Yes

Trim Color

White

Wattage Selectable

Weight Lb.

0.43

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
