7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts : X3TTY

No Image
Available

Image may not reflect selected features

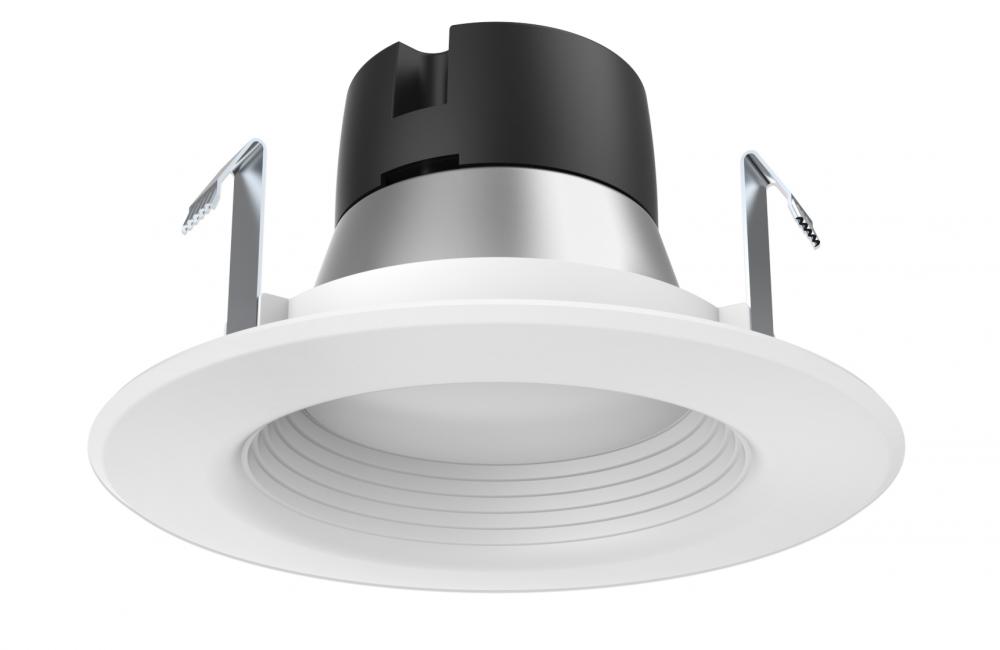

7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts (X3TTY) by Satco Products Inc. S9729

7.5 watt LED Downlight Retrofit; 4'' Baffle; 3000K; GU5.3 socket for MR16 retrofit; 12 volts

Product Specification

Item #

X3TTY

Dimensions

Height: 2.91"

Width: 5.31"

Additional product details

Vendor Item #

S9729

Internal #

X3TTY

Category

Recessed

Sub Category

Retrofits

Style

Modern and Contemporary

Bulb Hours

35000

Bulb Kelvin

Warm White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

5.31

Dimmable

Yes-Dimmable

Harmonized Codes

9405.42.6000

Lumens

460L

Ship Carton Height

5.91

Ship Carton Length

5.51

Ship Carton Width

3.62

Warranty

3 Year Limited - Fixtures

Amps

0.625A

ANSI Base

GU5.3

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

4 in.

Carton Cubic Feet

0.0682

Cartons Per Unit

CCT Selectable

CEC

Exempt - Base Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

Dimmable Down To

100 to 20 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy

61.33 LPW

FCC Compliant

Yes

Feature 1

Diameter: 5.31 inches, Height: 2.91 inches

Feature 2

Dimmable

Feature 3

White and Frosted finish

Feature 4

3000K Warm White Light

Feature 5

460 lumens

Feature 6

Wet location rated for indoor use

Feature 7

Easy installation

Feature 8

FCC and RoHS Compliant

Feature 9

3 year limited warranty

Finish Family

White

Fixture shape

Round

Incandescent Equivalent

50W

Includes

Bi Pin GU5.3 Adapter included with this fixture

Indoor Outdoor

Indoor

Installation Notes

GU5.3 base

JA8 Compliant

Long Description

Satco's S9729 7.5 watt, LED downlight retrofit is a versatile, innovative lighting solution for commercial and residential applications. This easy to install, environmentally friendly fixture is compatible with most 4 inch recessed cans. Dimmable, and

Material

Aluminum

Mounting Procedure

Ceiling

Operating Temprature

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Quantity In Pack

Rated For Vapor Tight Fixture

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's 7.5 watt, LED downlight retrofit is a versatile, innovative lighting solution for commercial and residential applications. This easy to install, environmentally friendly fixture is compatible with most 4 inch recessed cans. Dimmable, and effici

Safety Listing

Not Listed

SDS class

LED_Fixture

Short Description

7.5WLED/RDL/4"BFL/12V 90CRI 3K

Temperature (CCT)

3000K

Title 20 Compliant

Title 24 Compliant

Trim Color

White

Wattage Selectable

Weight Lb.

0.48

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
