9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight : X3NY1

No Image
Available

Image may not reflect selected features

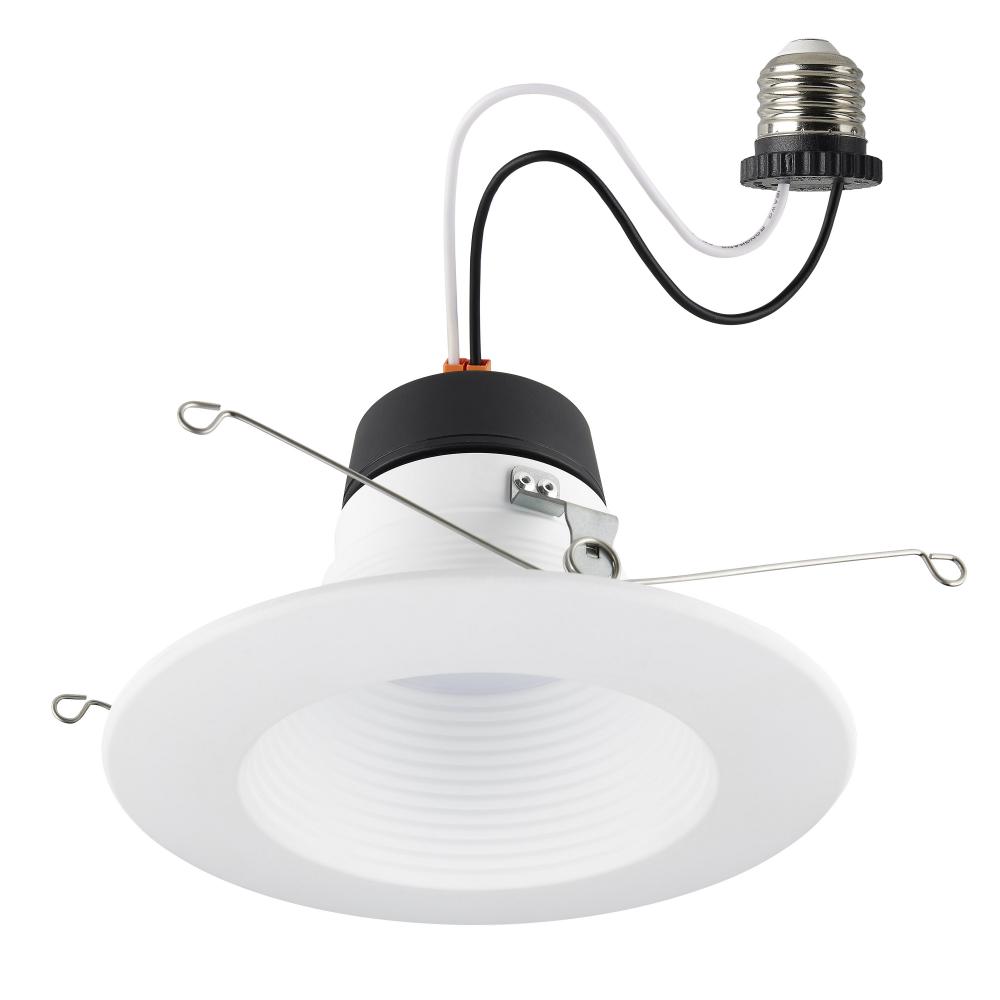

9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight (X3NY1) by Satco Products Inc. S11845

9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight

Product Specification

Item #

X3NY1

Dimensions

Height: 4.29"

Width: 7.20"

Additional product details

Vendor Item #

S11845

Internal #

X3NY1

Category

Recessed

Sub Category

Retrofits

Style

Utility

Bulb Hours

50000

Bulb Kelvin

Warm to Cool White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.2

Dimmable

Yes-Dimmable

Harmonized Codes

8539.52.0091

Lumens

800L

Ship Carton Height

7.5

Ship Carton Length

4.25

Ship Carton Width

8.44

Warranty

5 Year Limited - Fixtures

Air Tight

Amps

0.075A

ANSI Base

Integrated

Beam Spread

CA Prop-65

Lead

Can Size

6 in.

Carton Cubic Feet

0.1557

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Connection

Direct Wired

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Efficacy

88.89 LPW

ES Category

Downlight Solid State Retrofit

ES Unique ID

ESID-2396913

FCC Compliant

Yes

Feature 1

ColorQuick Technology; CCT Selectable

Feature 2

Reduced glare with subtle, pleasing light distribution

Feature 3

Dimmable

Feature 4

90 CRI and Wet location rated

Feature 5

T20, T24 compliant

Feature 6

Energy Star certified

Feature 7

Rated life of 50,000 hours

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

65W

Includes

E26 Adapter included (S9001)

Indoor Outdoor

Indoor

IOT Enabled

JA8 Compliant

Yes

Lens Material

Polycarbonate (PC)

Long Description

The Satco S11845, 9 watt, 6 inch recessed retrofit is designed with the architect in mind. It represents an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our

Material

Aluminum

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Box

Power Factor

0.95

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's latest LED recessed retrofits are designed with the architect in mind. They represent an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our latest

Safety Listing

cULus - Classified

SDS class

LED_Fixture

Short Description

9WLED/DB/RDL/6/CCT-SEL/120V

Sloped Ceiling Compatible

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Yes

Title 24 Compliant

Yes

Trim Color

White

Trim Material

Aluminum

Wattage Selectable

Weight Lb.

0.53

Manufactured By

Satco Products Inc.

Finish
