9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; Black : X3NXZ

No Image
Available

Image may not reflect selected features

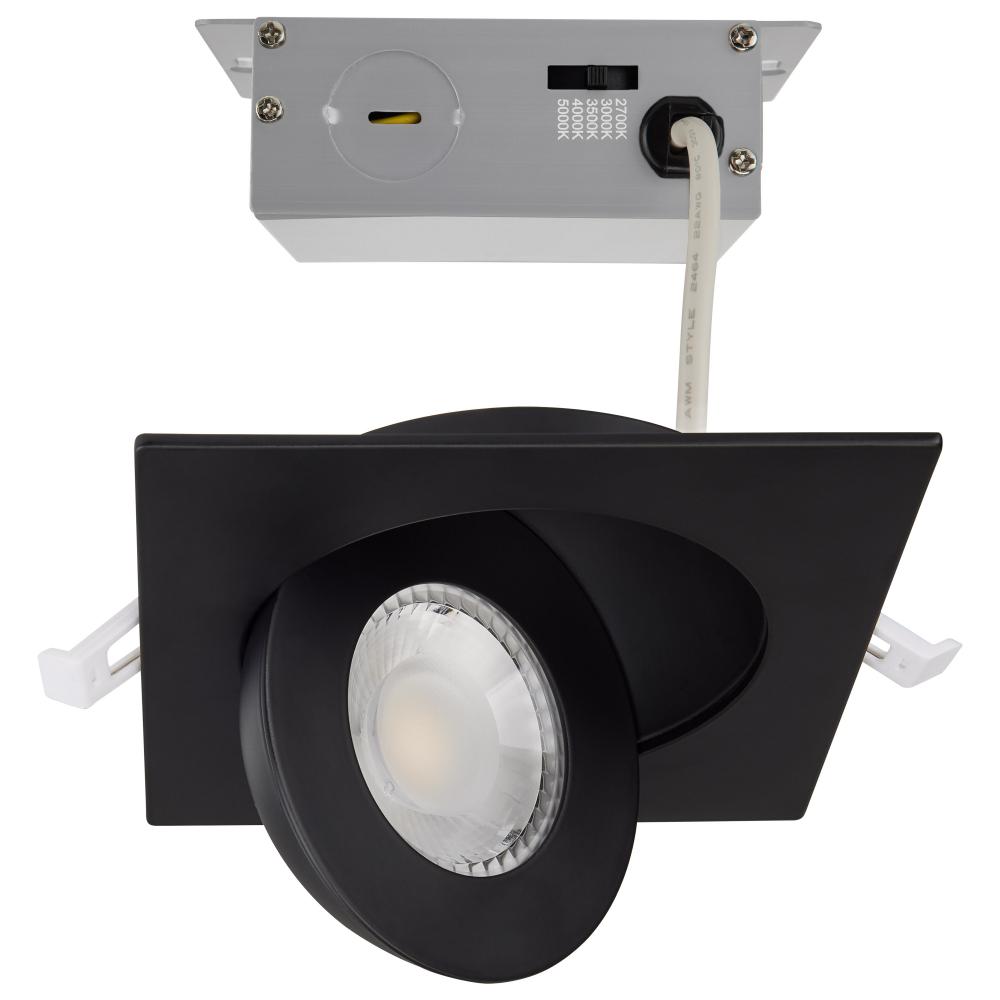

9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; Black (X3NXZ) by Satco Products Inc. S11843

9 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 4 Inch Square; Remote Driver; Black

Product Specification

Item #

X3NXZ

Dimensions

Height: 1.42"

Width: 4.92"

Additional product details

Vendor Item #

S11843

Internal #

X3NXZ

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Additional Info

Candlepower: 750

Bulb Hours

50000

Bulb Kelvin

Warm to Cool White

Bulb Shape

Integrated LED

Bulb Type

LED

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.8010

Length

4.92

Lumens

650L-750L

Ship Carton Height

5.08

Ship Carton Length

6.34

Ship Carton Width

3.07

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.075A

ANSI Base

Integrated

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

4 in.

Carton Cubic Feet

0.0572

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

4.25 in. Cutout

Clearance Height

Connection

Direct Wired

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Efficacy

72.22/77.78/83.33 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-2393126

FCC Compliant

Yes

Feature 1

CCT selectable 2700K/3000K/3500K/4000K/5000K

Feature 2

360-degree rotation, 0 to 80-degree aiming angle

Feature 3

Dimming range 10 percent to 100 percent

Feature 4

Damp location rated

Feature 5

Long life - 50,000 hours

Feature 6

Energy Star certified

Finish Family

Black

Fixture shape

Square

Has Driver

Yes

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

50W

Indoor Outdoor

Indoor

Installation Notes

**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)

IOT Enabled

IP Rating

IP42

JA8 Compliant

Yes

Lens Finish

Clear

Lens Material

Plastic

Long Description

The black, four-inch square Satco S11843 gimbaled downlight delivers multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect

Material

Aluminum

Max Drywall Thickness

1 in.

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +45C (+113F)

Pack Type

Color Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Rec Spacing Between Fixtures

3 ft. to 4 ft.

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

These low profile, CCT selectable remote driver downlights deliver multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect l

Safety Listing

cETLus - Listed

SDS class

LED_Lamp

Short Description

9WLED/GBL/4/CCT/SQ/BLK

Sloped Ceiling Compatible

Yes

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Yes

Wattage Selectable

Weight Lb.

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
