9 Watt; LED Downlight Retrofit; 5-6 Inch; CCT Selectable; 120 Volts; Black Finish : X6VFK

No Image
Available

Image may not reflect selected features

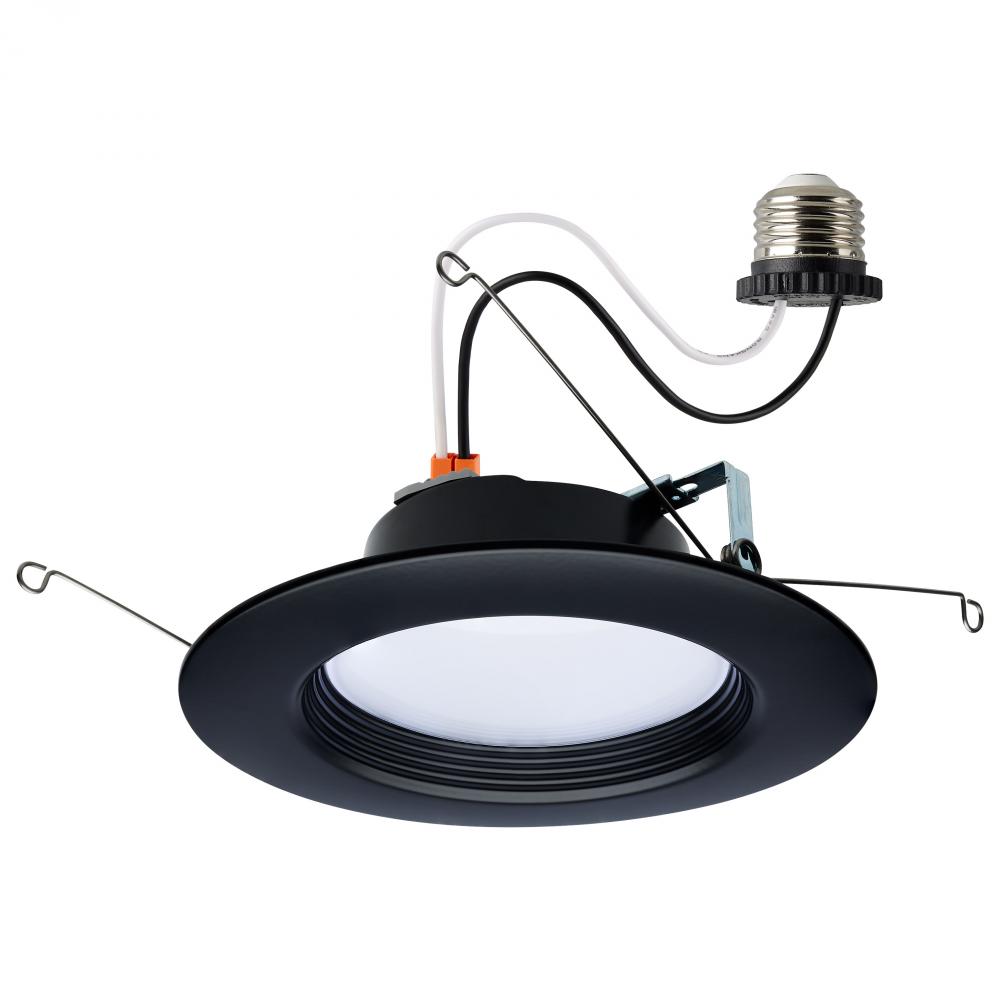

9 Watt; LED Downlight Retrofit; 5-6 Inch; CCT Selectable; 120 Volts; Black Finish (X6VFK) by Satco Products Inc. S11835R1

9 Watt; LED Downlight Retrofit; 5-6 Inch; CCT Selectable; 120 Volts; Black Finish

Product Specification

Item #

X6VFK

Dimensions

Height: 2.32"

Width: 7.41"

Additional product details

Vendor Item #

S11835R1

Internal #

X6VFK

Category

Recessed

Sub Category

Retrofits

Style

Contemporary

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.41

Dimmable

Yes-Dimmable

Harmonized Codes

8539.52.0091

Lumens

800L

Ship Carton Height

8.460000000000001

Ship Carton Length

7.6

Ship Carton Width

2.36

Warranty

5 Year Limited - Fixtures

Amps

0.095A

ANSI Base

E26 Adapter

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

5-6 in.

Carton Cubic Feet

0.0878

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

5.875 in. Cutout

Clearance Height

3.25

Connection

Connector or Adapter

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Phase cut

Efficacy

88.89 LPW

Enclosed Fixture Use

Yes

ES Unique ID

ESID-3354720

FCC Compliant

Yes

Feature 1

5 CCT Selectable

Feature 10

ENERGY STAR Certified

Feature 2

Black Trim

Feature 3

90-Degree Beam Angle

Feature 4

E26 Adapter Included

Feature 5

90 CRI

Feature 6

Wet Location Rated

Feature 7

50,000 hour life

Feature 8

Dimmable Down to 10%

Feature 9

Suitable for Bathroom Applications

Finish Family

Black

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

65W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Plastic (PS)

Long Description

SATCO|NUVO’s S11835R1 LED Retrofit Downlight is the easy way to convert traditional recessed lighting to high-lumen LED. This 5/6-inch round fixture is sized for, and comes ready with, an E26 base adapter for instant illumination when installed with exis

Material

Steel

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO’s LED Retrofit Downlights are the easy way to convert traditional recessed lighting to LED. Offered in 4-inch and 5/6-inch models, these fixtures are sized for, and come ready with, an E26 base adapter for instant illumination when installed w

Safety Listing

cETLus - Classified

Short Description

9WLED/DLR/5-6/CCT-SEL/RD/BL

Sloped Ceiling Compatible

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Yes

Title 24 Compliant

Yes

Total Harmonic Distortion

<45%

Wattage Selectable

Weight Lb.

0.68

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
