Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Harmonized Codes
8539.52.0051
Lumens
1100L/1175L/1200L/1250L/1150L
Warranty
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Bulb Base
Miniature Bi Pin
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Efficacy
122.22/130.56/138.89 LPW
Enclosure Rating
Enclosed Rated Lamp
Feature 2
14-Watt Fluorescent equivalent
Feature 3
1250 max lumens
Feature 4
Range voltage: 120V-277V
Feature 5
Wiring: Single Ended, Double Ended
Feature 6
Enclosed Fixture Rated
Feature 7
Beam angle of 160 degrees
Feature 8
Functional life of 50,000 hours
Feature 9
Type B Ballast Bypass
Flourescent Equivalent
14W
Incandescent Equivalent
75W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended;Double Ended
Long Description

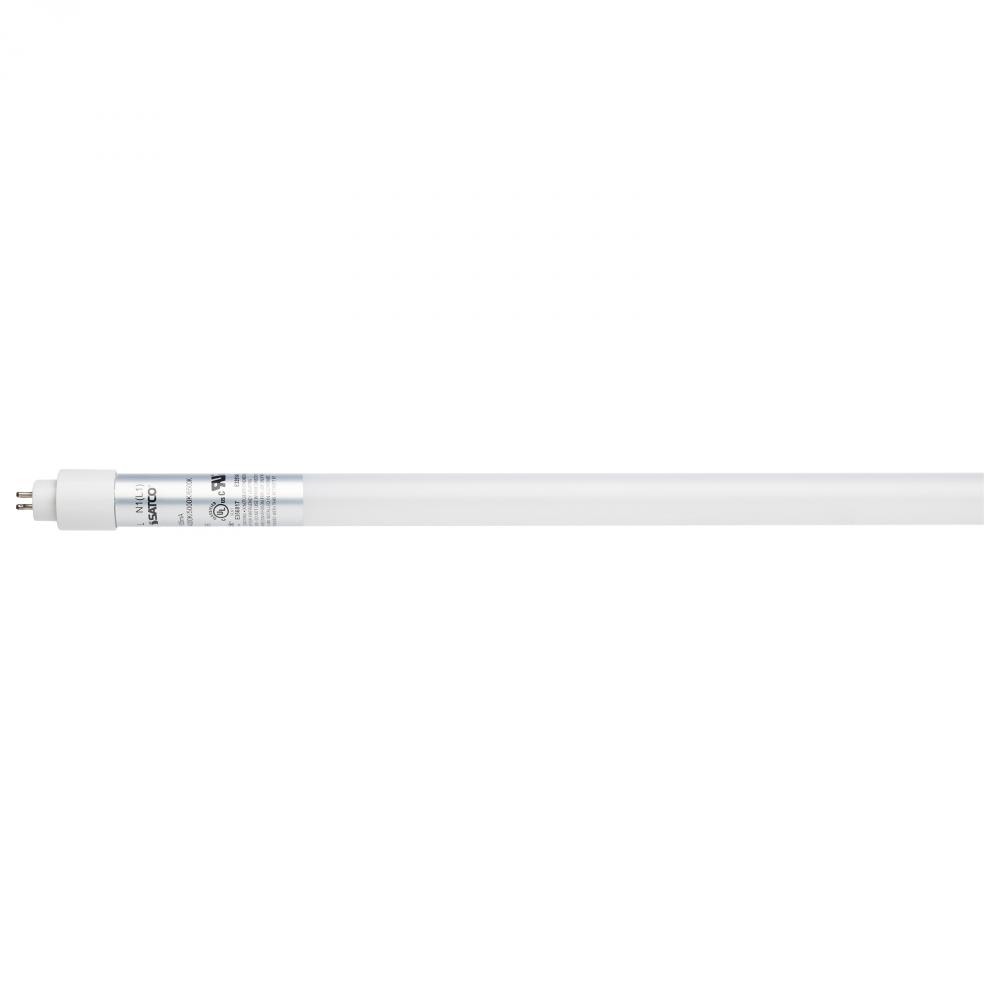

The Satco S11650 LED T5 lamp is a durable and functional lighting solution for a variety of applications. Its sleek, white design and shatterproof PET glass construction make it ideal for use in high-traffic areas and damp locations, such as bathrooms and
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Romance Copy
SATCO|NUVO LED T5 lamps are the perfect replacement for fluorescent tubes. They are easy to install, energy efficient, and long-lasting. Available in 2-foot, 3-foot, and 4-foot lengths, these lamps are also five CCT selectable, so you can choose the perfec
Shatter Proof Text
PET Coated
Short Description
9T5/LED/24-CCT/BP/HE/SE-DE
Surge Protection
Built-in-surge protection - 0.7KV
Total Harmonic Distortion
<25%
