9.2 Watt; LED Downlight Retrofit; 5-6 inch; 90 CRI; 3000K; 120 Volt; Pack of 6 : X3NW7

No Image
Available

Image may not reflect selected features

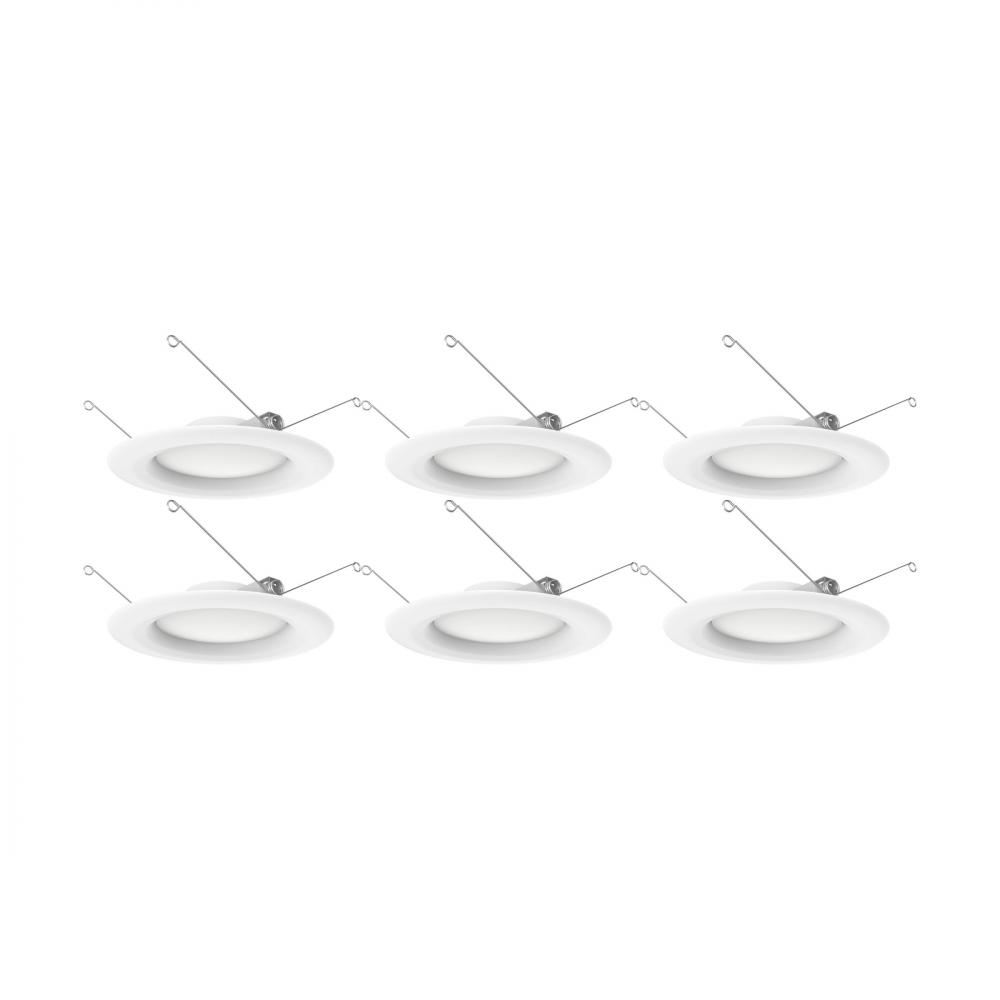

9.2 Watt; LED Downlight Retrofit; 5-6 inch; 90 CRI; 3000K; 120 Volt; Pack of 6 (X3NW7) by Satco Products Inc. S11641

9.2 Watt; LED Downlight Retrofit; 5-6 inch; 90 CRI; 3000K; 120 Volt; Pack of 6

Product Specification

Item #

X3NW7

Dimensions

Height: 1.55"

Width: 7.48"

Additional product details

Vendor Item #

S11641

Internal #

X3NW7

Category

Recessed

Sub Category

Retrofits

Style

Utility

Bulb Hours

35000

Bulb Kelvin

Warm White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.48

Dimmable

Yes-Dimmable

Harmonized Codes

8539.52.0091

Lumens

650L

Ship Carton Height

7.68

Ship Carton Length

8.27

Ship Carton Width

10.83

Warranty

5 Year Limited - Fixtures

Amps

0.077A

ANSI Base

E26 Adapter

Beam Spread

102

CA Prop-65

Lead

Can Size

5-6 in.

Carton Cubic Feet

0.3981

Cartons Per Unit

CCT Selectable

CEC

T20 Non-Compliant - LPW <80

CEC Terse

Non-Compliant

CEC Web Text

Non-Compliant

Connection

Direct Wired

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Efficacy

70.65 LPW

ES Category

Downlight Solid State Retrofit

ES Unique ID

ESID-2369139

FCC Compliant

Yes

Feature 1

Six-pack for value and convenience

Feature 2

Easy to install

Feature 3

E26 adapter included

Feature 4

For use with recessed housings with an E26 socket only

Feature 5

CEC compliant: both T20 and T24

Feature 6

Three year warranty

Finish Family

White

Fixture shape

Round

Has Driver

Yes

Has Emergency Battery

Incandescent Equivalent

65W

Includes

E26 Socket Adapter For Recessed Down Light (S9001)

Indoor Outdoor

Indoor

IOT Enabled

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Plastic (PS)

Long Description

Satco's S11641 9.2-watt, LED downlight retrofit is an easy to install lighting solution for commercial applications. Illuminate offices, retail spaces, and hotels, with this dimmable, contemporary, downlight retrofit. Round, with a white finish, this d

Material

Plastic / Aluminum

Minimum Compartment Size

Length: 11.3 in. Width: 11 in. Depth: 11 in.

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Pack Type

Contractor Box

Photocell

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's 9.2-watt, LED downlight retrofit is an easy to install lighting solution for commercial applications. Illuminate offices, retail spaces, and hotels, with this dimmable, contemporary, downlight retrofit. Round, with a white finish, this downligh

Safety Listing

cULus - Classified

SDS class

LED_Fixture

Short Description

9.2WLED/RDL/5-6/930/120V/6PK

Temperature (CCT)

3000K

Title 20 Compliant

Title 24 Compliant

Trim Color

White

Wattage Selectable

Weight Lb.

2.52

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
