Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 : X6VFP

No Image
Available

Image may not reflect selected features

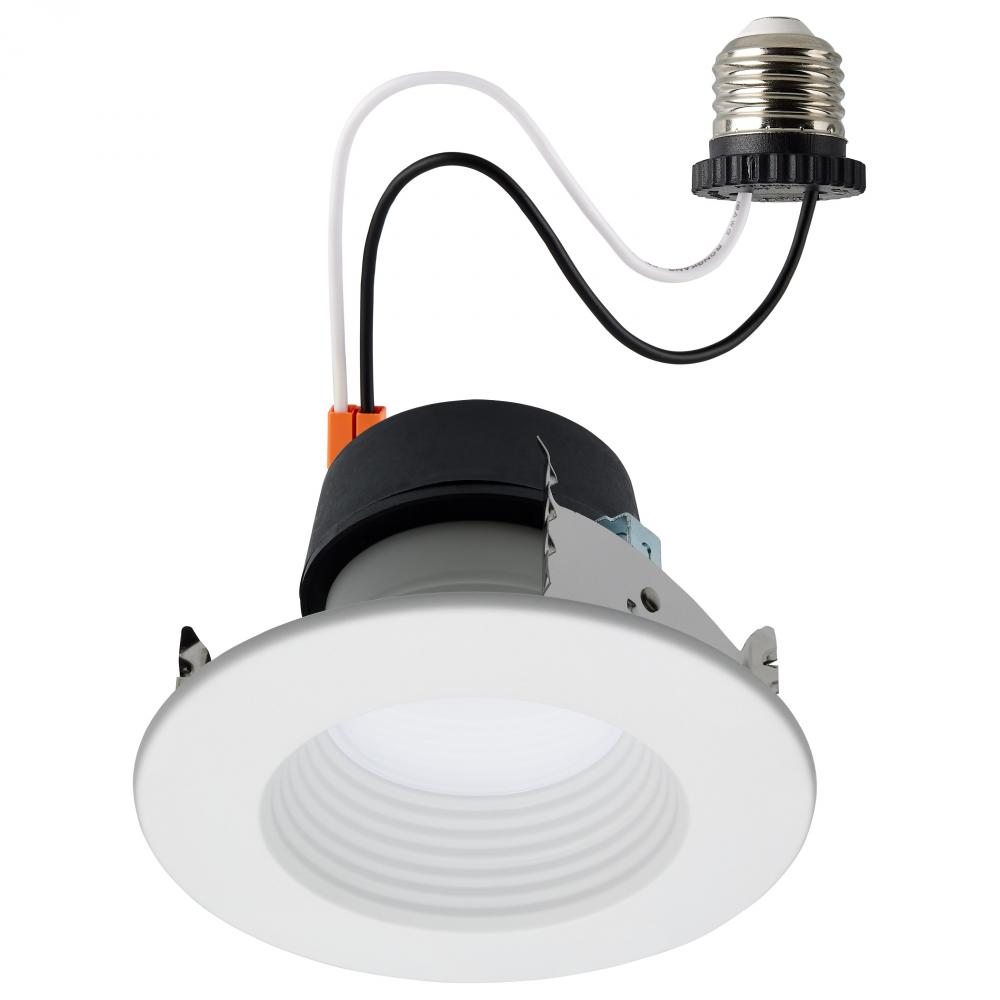

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 (X6VFP) by Satco Products Inc. S11882

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 Inch; Round Shape; White Finish; 120 Volts

Product Specification

Item #

X6VFP

Dimensions

Height: 3.25"

Width: 5.12"

Additional product details

Vendor Item #

S11882

Internal #

X6VFP

Category

Recessed

Sub Category

Retrofits

Style

Utility

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

5.12

Dimmable

Yes-Dimmable

Harmonized Codes

8539.52.0091

Lumens

600L/750L/900L

Ship Carton Height

5.31

Ship Carton Length

5.31

Ship Carton Width

3.43

Warranty

5 Year Limited - Fixtures

Air Tight

Amps

0.050/0.062/0.080A

ANSI Base

E26 Adapter

Beam Spread

CA Prop-65

Lead

Can Size

4 in.

Carton Cubic Feet

0.056

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Ceiling Aperture

4.00 in. Cutout

Connection

Connector or Adapter

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Dimming Type

Phase cut

Efficacy

103.45/107.14/94.74 LPW

ES Unique ID

ESID-3354723

FCC Compliant

Yes

Feature 1

CCT and Wattage Selectable

Feature 2

Stepped Baffle for Reduced Glare

Feature 3

Dimmable

Feature 4

E26 Adapter Included

Feature 5

90 CRI

Feature 6

Wet Location Rated

Feature 7

Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements

Feature 8

50,000 Hour Functional Life

Finish Family

White

Fixture shape

Round

IC Rated

Incandescent Equivalent

60W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Material

Polycarbonate (PC)

Long Description

SATCO|NUVO’s S11882 4-inch round field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users can

Material

Aluminum

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Pack Type

Color Box

Power Factor

0.94

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO’s LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enhanc

Safety Listing

cETLus - Classified

Short Description

9.5WLED/DLR/4/WS/5CCT/RD/DB

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Yes

Title 24 Compliant

Yes

Total Harmonic Distortion

<25%

Wattage Selectable

Yes

Weight Lb.

0.39

Manufactured By

Satco Products Inc.

Finish

Additional options that would change other selections
