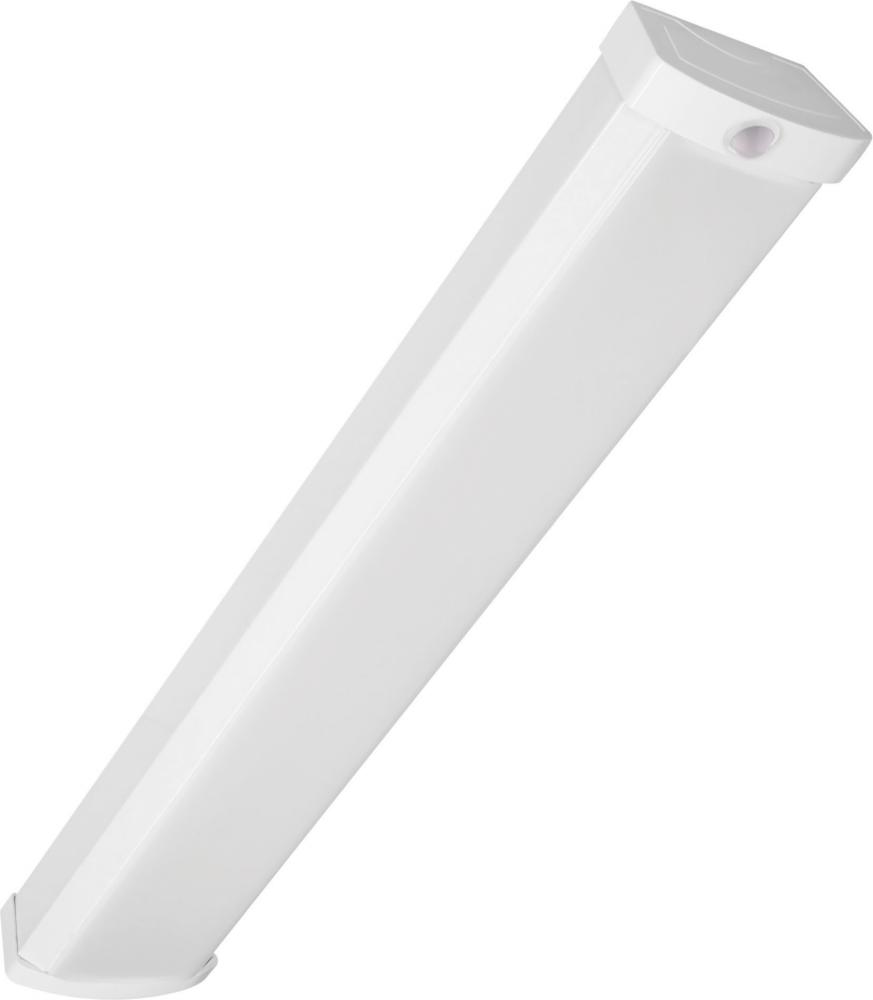

LED 2 ft.- Ceiling Wrap with Motion Sensor - 20W - 3000K - White Finish - 120-277V
Image may not reflect selected features
LED 2 ft.- Ceiling Wrap with Motion Sensor - 20W - 3000K - White Finish - 120-277V (A36NN) by Nuvo 65/1095
LED 2 ft.; Ceiling Wrap with Motion Sensor; 20W; 3000K; 120-277V
Product Specification
Item #
A36NN
Dimensions
Height: 2.64"
Width: 5.50"
Additional product details
Vendor Item #
65/1095
Internal #
A36NN
Category
Undercabinet
Subcategory
Strip Lights
Finish
White
Style
Traditional
Option
Energy Star , LED , Prop 65
Lumens
1101-1600
Kelvin
2501-3000
Category
Linear Strip
Sub Category
Wrap Fixture
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Non-Dimmable
Each Height
2.76
Each Length
25.2
Each Width
5.51
Length
24.5
Lumens
1600L
Tariff Code
9405.11.6010
Warranty
5 Year Limited - Fixtures
Amps
0.167-0.072A
ANSI Base
Integrated
BAA Compliant
No
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Closet Rated
Yes
Connection
Direct Wired
Country Of Origin
China
CRI
90
Each Cube
0.2218
Each Quantity
1
Efficacy
80.00 LPW
ES Category
Ceiling Mount
ES Unique ID
ESID-2332455
FCC Compliant
Yes
Feature 1
Length: 24.50 inches, Width: 5.50 inches: Height: 1.63 inches
Feature 2
White Finish
Feature 3
5 year limited warranty
Feature 4
1600 lumens
Feature 5
Maintenance Free - No bulb to change
Feature 6
3000K Warm White Light
Feature 7
Superior 90 CRI light quality
Feature 8
Rated for 50,000 hours
Feature 9
FCC and RoHS compliant
Finish Family
White
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
JA8 Compliant
No
Long Description
Satco's 65-1095 20 watt, 2 foot LED ceiling wrap is an innovative lighting solution for commercial and residential applications. Illuminate kitchens, hallways, and work areas with this slim, maintenance free, LED fixture that provides even light distri
Material
Steel
Mounting Procedure
Ceiling/Wall
NEC Compliance
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Photocell
Has Motion Sensor
Power Factor
0.91
Quantity In Pack
1
R9 Value
67
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 20 watt, 2 foot LED ceiling wrap is an innovative lighting solution for commercial and residential applications. Illuminate kitchens, hallways, and work areas with this slim, maintenance free, LED fixture that provides even light distribution.
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Sensor Detection Range
19.69' max(<25D)
Sensor Mounting Height
7.22 - 13.12'
Sensor Mounting Type
Flush
Sensor Occupancy or Vacancy
Occupancy
Sensor Operating Temperature
-10C (-14F) to +40C (+104F)
Sensor Operation
Single Pole
Sensor Time Delay
50s
Short Description
2FT LED CEILING WRAP
Temperature (CCT)
3000K
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
2.69
Manufactured By
Nuvo
Finish
