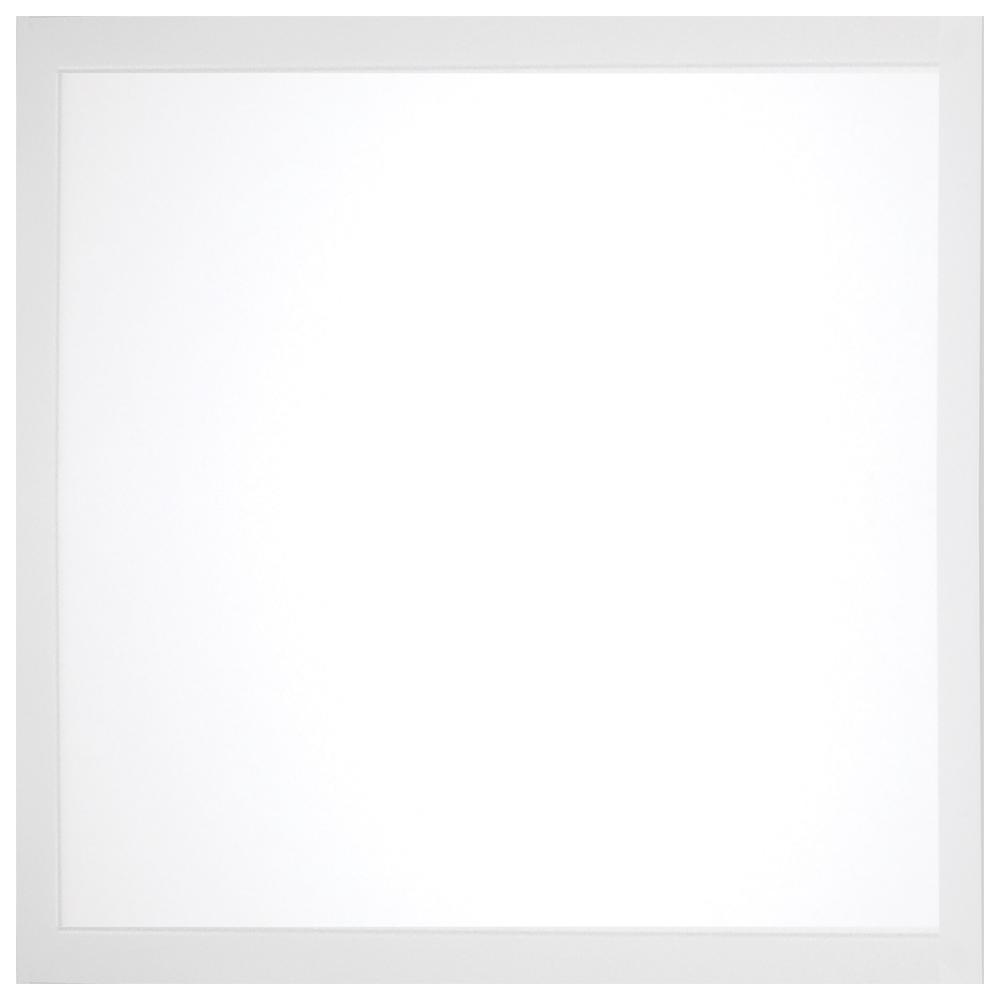

LED Emergency Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-277 Volt; : A39LN

No Image
Available

Image may not reflect selected features

LED Emergency Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-277 Volt; (A39LN) by Nuvo 65/575R1

LED Emergency Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Product Specification

Item #

A39LN

Dimensions

Height: 3.06"

Width: 23.75"

Additional product details

Vendor Item #

65/575R1

Internal #

A39LN

Category

Flat Panel

Sub Category

Backlit Emergency

Style

Utility

Additional Info

Driver Specs - VDC38-48V; 430/620/810mA

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

25.2

Each Length

Each Width

4.33

Length

23.75

Lumens

2200L-4600L

Tariff Code

9405.11.6020

Warranty

5 Year Limited - Fixtures

Wire Length

3.54

Air Tight

Amps

0.200-0.072/0.300-0.108/0.400-0.144A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

80+

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Standard

DLC Primary Use

2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube

1.5786

Each Quantity

Efficacy

110.00/113.33/115.00 LPW

FCC Compliant

Yes

Feature 1

3500K/4000K/5000K CCT Selectable

Feature 2

20W/30W/40W Wattage Selectable

Feature 3

Integrated emergency battery backup with 90-minute run time

Feature 4

Flicker Free, Even Light Distribution

Feature 5

0-10V Dimmable

Feature 6

50,000 average rated hours of use

Feature 7

DLC Listed

Finish Family

White

Fixture shape

Square

Flicker Free

Yes

Has Emergency Battery

Yes

IC Rated

Yes

Incandescent Equivalent

150W-175W

Indoor Outdoor

Indoor

IOT Enabled

IP Rating

IP20

JA8 Compliant

Lens Finish

Frost

Lens Material

Poly methyl methacrylate (PMMA)

Long Description

SATCO|NUVO's LED Backlit 2X2 Flat Panel 65-575R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t

Material

Aluminum / Steel

Mounting Procedure

Ceiling

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-17C (+1.4F) to +45C (+113F)

Pack Type

Box

Panel Size

2x2

Photocell

No Photocell

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

2X2 LED EM BACKLIT FLAT PANEL

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

16.30%

Wattage Selectable

Yes

Weight Lb.

7.94

Wire Gauge

Wire Temp Rating

80C (176F)

Manufactured By

Nuvo

Finish

Additional options that would change other selections
