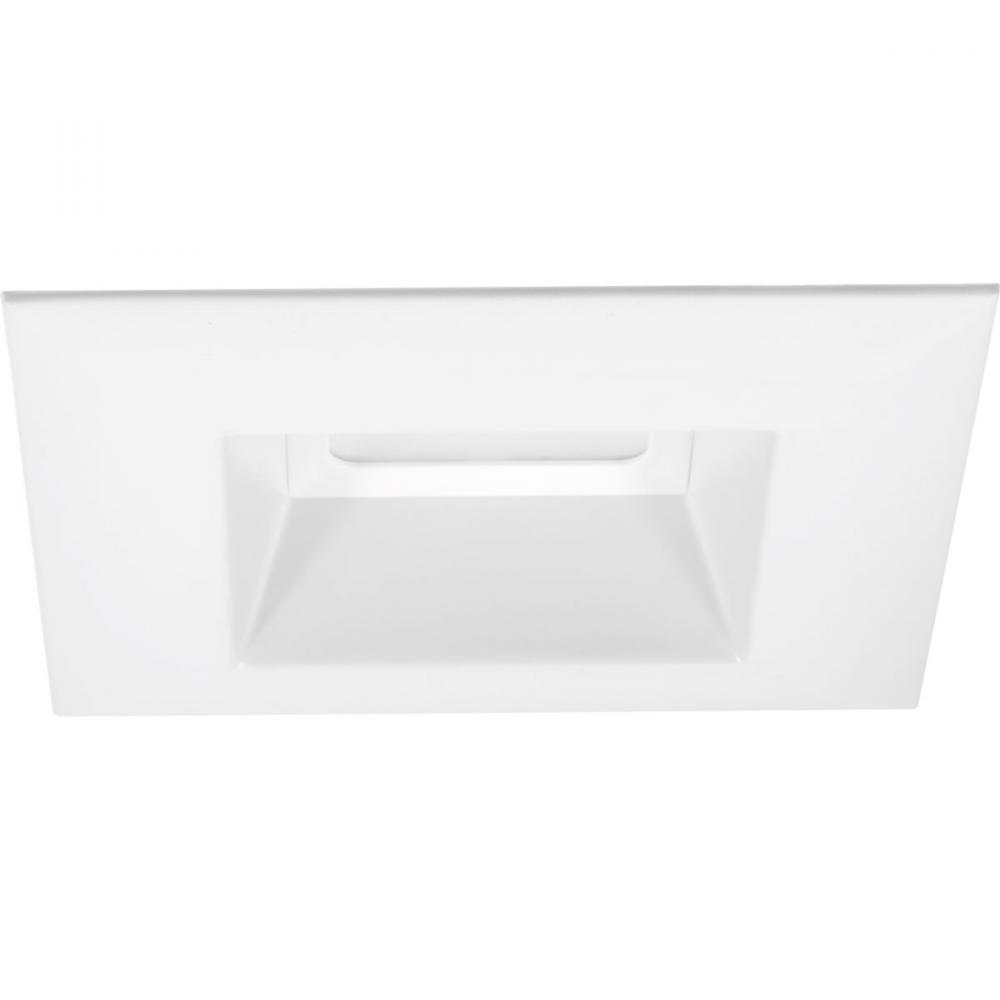

5" LED Square Recessed trim (AJ7NN)
by Progress P8161-28-30K
The P8161 is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75% energy savings. The P8161 is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings.
white;5 inch led square retrofit;white;solid state;led;recessed;recessed light;recessed light kit;recessed trim;trim;recessed housing;housing;recessed light trim;retrofit trim;led trim;led recessed trim
Lumens / Light Output
694
Material
Aluminum Diecast Housing - Construction
Max Height
4
Ship Carton Height
7.370
Ship Carton Length
7.870
Ship Carton Width
5.120
Ship Weight
1.130
Special Features
White Finish.;Diffused Polycarbonate Lens Controls Direct Glare From The Leds;Easy "Push And Twist" Installation With (3) Friction Spring Clips;Can Be Installed In Most 5" Round Recessed Housings;Dimmable To 10% With Many Triac/Forward Phase D
Warranty
5 Year Warranty
Weight
1.04
Color
White
CRI
90+
Dimming Compatability
Lutron NTEVL-300;Lutron AYLV-600P;Leviton 6672
Dimming Protocol
Triac/Forward Phase
Dimming Range
10%
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
LensShade Material
Polycarbonate
Listed
cCSAus
Mount Location
Ceiling Flush/Recessed
Operating Temprature
30ยบ C
Overall Length With
Overall Ht.
Manufactured By
Progress
Finish
Additional options that would change other selections
Glass
Additional options that would change other selections
