6" LED Outdoor Up/Down Wall Cylinder
Image may not reflect selected features
/vendors/149/large/p5642_3130k.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image

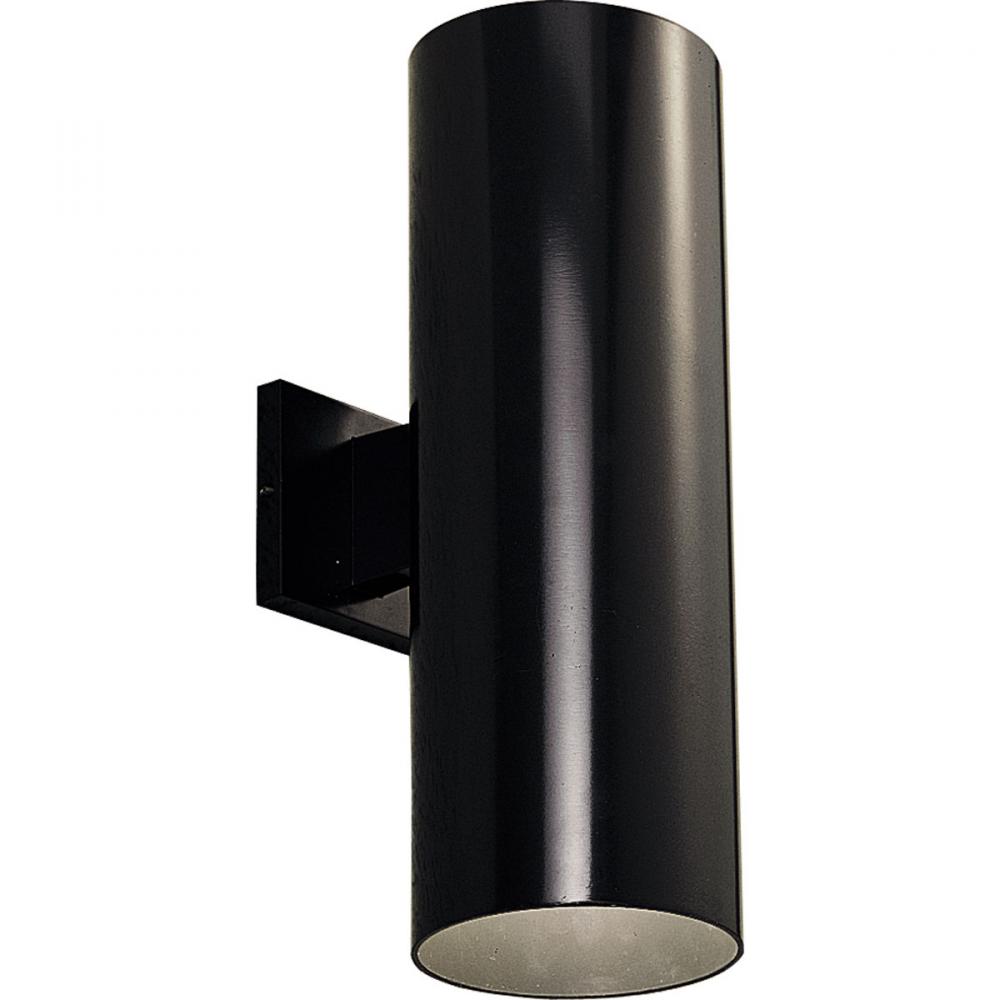

6" LED Outdoor Up/Down Wall Cylinder (1RH9J) by Progress P5642-31/30K
6" uplight/downlight wall cylinders are ideal for a wide variety of interior and exterior applications including residential and commercial. The aluminum Cylinders offers a contemporary design with its sleek cylindrical form and elegant fade and chip resistant Black finish, perfect for today's inspired exteriors. With over 2,150 lumens both up and down the LED Cylinders unite performance, energy savings and safety benefits. Provides even illumination up and down. Specify P860046 top cover lens for use in wet locations.
Downloads
Product Specification
Item #
1RH9J
Dimensions
Height: 18.00"
Width: 8.88"
Length: 6.00"
Additional product details
Vendor Item #
P5642-31/30K
Internal #
1RH9J
Category
Sconces
Subcategory
Wall Lights , Outdoor Wall Lights
Finish
Black
Style
Contemporary , Transitional
Option
Energy Efficient , Title 24 , Outdoor , Wet Rated , Damp Rated , LED , Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Outdoor
Finish
Black
Style
Modern;Transitional
Option
Damp Rated , Energy Efficient , Title 20 , Title 24
Family
Cylinder
Voltage
120
Number of Bulbs
2 Bulbs
Backplate Height
4.50
Backplate Width
4.50
Bulb Hours
60000
Bulb Type
Module
Depth
8.88
Height To Center of Outlet
8.00
Introduction Date
01/01/2015
Kelvin
3000
Keyword(s)
lantern;exterior light;outdoor light
Length
6.00
Lumens / Light Output
2150
Material
Die Cast and Extruded Aluminum
Ship Carton Height
19.50
Ship Carton Length
10.25
Ship Carton Width
8.50
Ship Weight
8.25
Special Features
Black finish.;Powder coat finish.;Die-cast aluminum construction with durable powder coated finish;2,150 lumens 30 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy requirements for outdoor use only
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
5.90
Wire Included
6 in
Americans with Disabilities Act
No
Backplate Depth
2.94
Bulb Base
Module
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Square
Certified Listed Location
Damp Location Listed
Construction Material Main Part
Construction
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P
Dimming Protocol
ELV/Reverse Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
No
Finish Type
Powder Coat Paint
Frequency Rating
60 Hz
Grounded Convenience Outlet included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
29
Lumens per Watt
30.00
Mount Location
Wall
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Outdoor
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
6 in Depth
Manufactured By
Progress
Finish
Additional options that would change other selections
Backplate Depth
Additional options that would change other selections
Included Items
Bulbs: (2) x 29 Watt Module
