LED Combination Exit/Emergency Light : 1VPTJ | Interstate Lighting and Electric

No Image
Available

Image may not reflect selected features

/vendors/149/large/PROG_PECUE_UR_30_RC_PRODIMAGE_1200.jpg

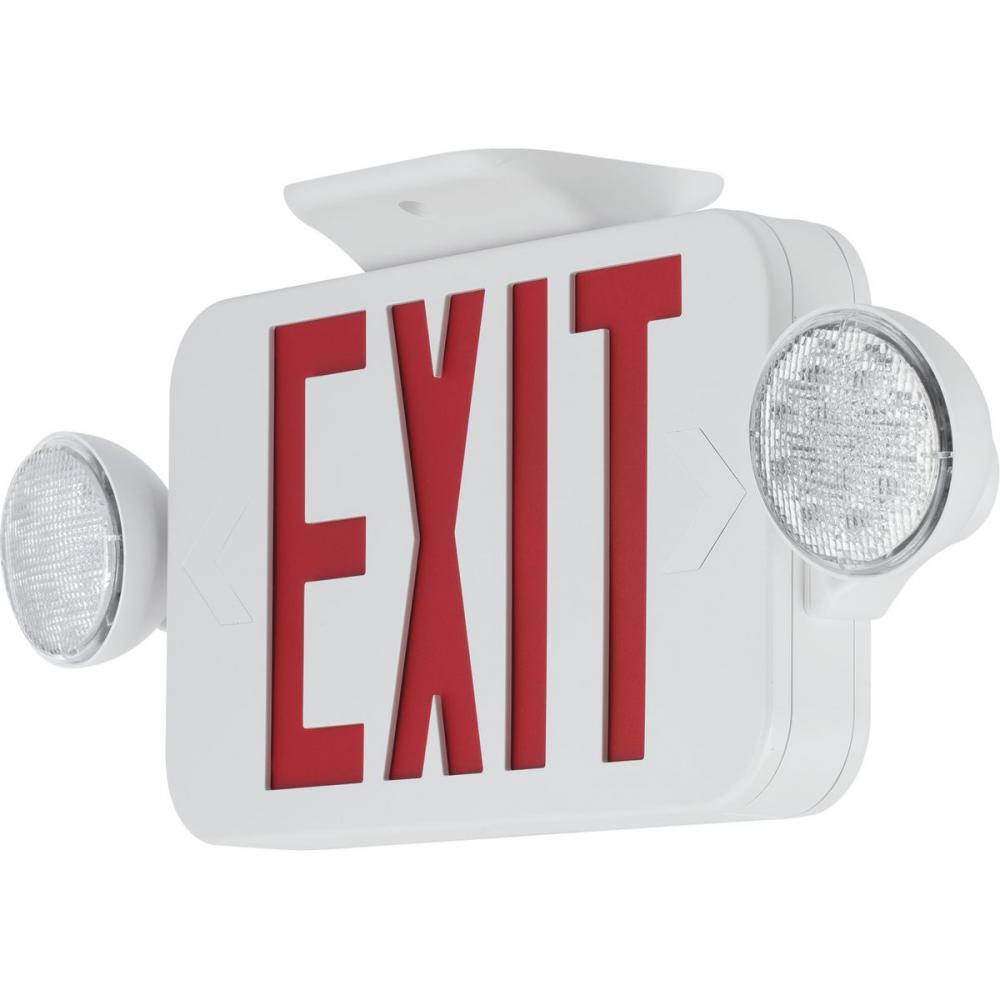

LED Combination Exit/Emergency Light (1VPTJ) by Progress PECUE-UR-30

LED Exit Sign Combo, Face style: Universal, Color: White, Number of Lamps: 2, Voltage Rating: Dual-voltage 120 or 277 VAC. The PECUE Series can be applied in stair-wells, hallways, offices and other commercial applications. Red lettering.

Downloads

Click Here to View Spec Sheet

Click Here to View Installation Sheet

Click Here to View Warranty

Product Specification

Item #

1VPTJ

Dimensions

Height: 7.25"

Width: 18.00"

Length: 4.30"

Additional product details

Vendor Item #

PECUE-UR-30

Internal #

1VPTJ

Category

Exit Sign/Emergency

Finish

White

Option

Damp Rated , Energy Efficient , Title 20

Family

Exit Signs

Voltage

Dual-voltage 120 or 277 VAC

Number of Bulbs

2 Bulbs

Bulb Type

LED

Depth

2.00

Introduction Date

01/16/2017

Keyword(s)

exit;emergency

Length

4.30

Lumens / Light Output

101

Material

Thermoplastic

Ship Carton Height

11.61

Ship Carton Length

21.42

Ship Carton Width

17.32

Ship Weight

5.00

Special Features

LED life-cycle of more than 10 years.;Molded-in template for Quick installation.;Includes long-life Nickel Cadmium battery for UL recognized 90 minute emergency lighting.;Provided with test switch and AC-On indicator.;Canopy included.;Lamp heads are fully

Vendor Ship Method

Non UPS Shippable False

Warranty

2 year full

Weight

2.50

Wire Included

6 in

Americans with Disabilities Act

Bulb Base

LED

Bulb Included

Yes

Can be Mounted Up or Down

Canopy Shape

Square

Certified Listed Location

Damp Location Listed

Construction Material Main Part

Construction

Convertible Fixture Includes Both Mounts

FALSE

Country of Origin

Dark Sky

Design Series

Energy Efficient

Yes

Energy Star

Finish Type

Painted

Grounded Convenience Outlet included

JA8

Lamp Type Actual

LED

Lamp Type Basic

Solid State

Lamp Wattage

4.1

Mount Location

Ceiling

MTO

Operating Temperature Celcius Max

30 °C

Prop 65

Yes

Prop 65 Description

Reproductive Harm, Cancer

Room Type

Emergency

Safety Rating

UL924

Starting Temperature Minimum

-30 °C

Title 20

Yes

Title 24

Weight of Fixture Exceeds NEC Limits

Width Diameter

18 in W.

Manufactured By

Progress

Lamp Wattage

Additional options that would change other selections

Included Items

Bulbs: (2) x 4.1 Watt LED
